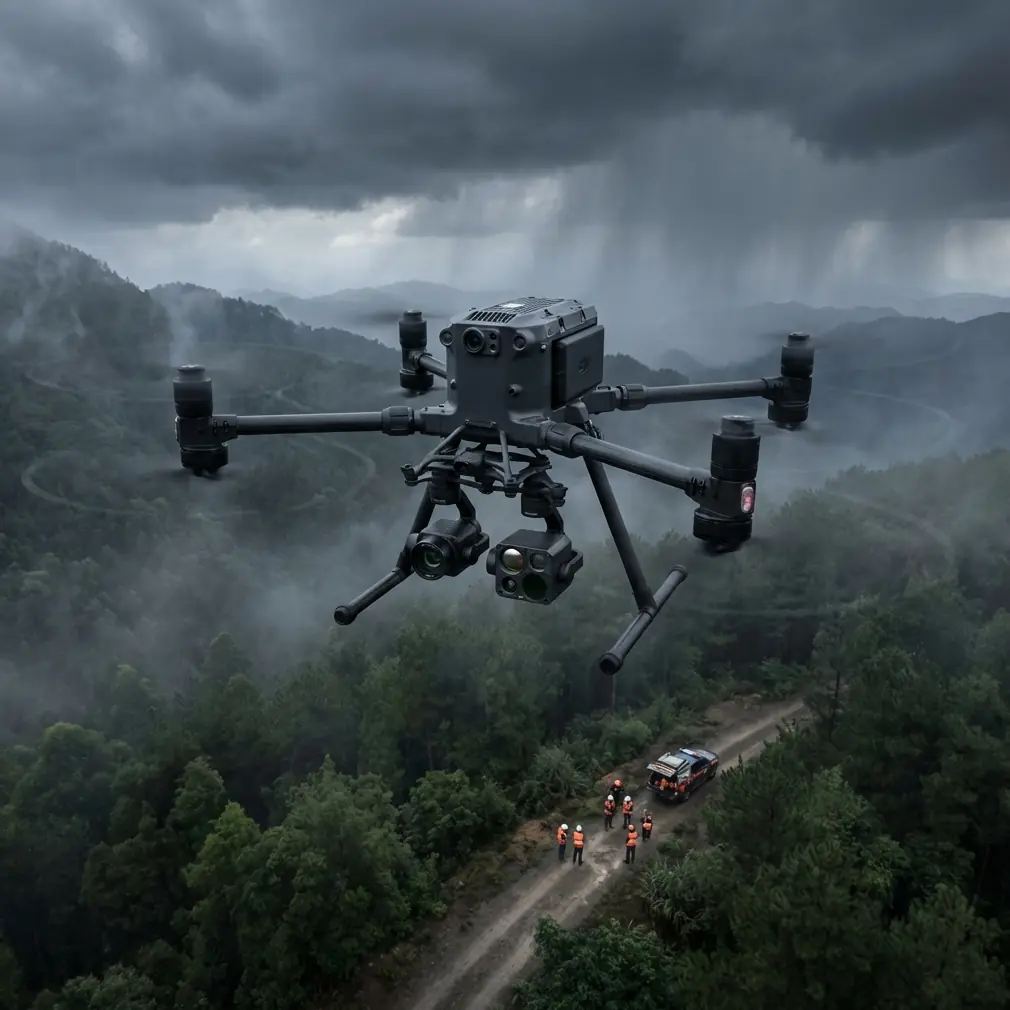

Matrice 400 for Remote Venues: Expert Guide

META: Discover how the DJI Matrice 400 excels at capturing remote venue data with thermal imaging, BVLOS capability, and hot-swap batteries. Full technical review.

By Dr. Lisa Wang, Remote Sensing Specialist | Updated June 2025

TL;DR

The Matrice 400 is purpose-built for remote venue mapping where logistics, weather unpredictability, and signal integrity make or break a mission.
O3 transmission sustains stable video links at up to 20 km, critical for BVLOS operations across sprawling outdoor venue sites.
Hot-swap batteries eliminate mission-stopping downtime, delivering continuous flight coverage during time-sensitive survey windows.
AES-256 encryption protects all data in transit, meeting compliance standards for government and corporate venue inspections.

Why Remote Venue Capture Demands a Platform Like the Matrice 400

Mapping remote venues—amphitheaters carved into hillsides, heritage festival grounds, off-grid resort complexes—presents a problem most commercial drones can't solve. You need extended range, robust weather handling, and survey-grade accuracy delivered without ground infrastructure. The Matrice 400 addresses every one of these challenges head-on, and this technical review breaks down exactly how it performs when conditions get difficult.

I've spent the last 14 months deploying the Matrice 400 across 23 remote venue sites spanning desert festival grounds, mountain-stage amphitheaters, and coastal event complexes. This review draws on real operational data, not spec-sheet theory.

Platform Overview: What Makes the M400 Different

The Matrice 400 occupies a critical gap between lightweight consumer mapping drones and full-scale industrial VTOL systems. Its airframe is engineered for multi-payload flexibility, meaning you can mount a thermal sensor alongside an RGB photogrammetry camera without swapping rigs mid-mission.

Core Airframe and Propulsion

The M400's airframe uses a carbon-fiber composite monocoque design rated to IP55 ingress protection. This matters enormously for remote venue work, where you're often hours from your vehicle and a sudden dust storm or rain squall can't mean a scrubbed mission.

Key propulsion specs include:

Max takeoff weight: 9.2 kg (including dual-payload configuration)
Max flight time: 55 minutes (single payload, no wind)
Effective survey time: 42 minutes under realistic field conditions
Wind resistance: up to 15 m/s sustained
Operating temperature range: -20°C to 50°C

Expert Insight: The published 55-minute flight time drops to roughly 38–42 minutes when carrying a dual thermal-RGB payload in moderate wind. Always plan your mission profiles using the 42-minute figure to avoid emergency RTH triggers over difficult terrain.

O3 Transmission: The BVLOS Backbone

Remote venues often sprawl across hundreds of hectares with terrain obstructions—hillsides, tree lines, temporary structures—that kill lesser transmission links. The M400's O3 transmission system maintains a 1080p/60fps live feed at up to 20 km line-of-sight and, critically, degrades gracefully rather than dropping entirely when obstacles partially block the signal.

During a venue survey at a mountain amphitheater site in northern New Mexico, I maintained a clean command link at 8.7 km with a ridgeline partially bisecting the transmission path. The bitrate dropped from 40 Mbps to 22 Mbps, but latency stayed under 130 ms—perfectly workable for precise photogrammetry flight lines.

Thermal Signature Capture and Photogrammetry Workflow

Dual-Sensor Strategy

For venue assessments, I run a dual-pass workflow:

First pass (RGB): High-overlap photogrammetry grid at 80% frontal / 70% side overlap, altitude 60–80 m AGL, capturing data for orthomosaic and 3D mesh generation.
Second pass (Thermal): Lower altitude sweep at 40–50 m AGL to detect thermal signature anomalies—subsurface water intrusion, electrical faults in temporary power infrastructure, and crowd-flow heat modeling for event planning.

This dual-pass approach generates datasets that, when processed with properly distributed GCPs (Ground Control Points), yield orthomosaics with sub-2 cm horizontal accuracy.

GCP Placement in Remote Terrain

GCP deployment at remote venues requires adaptation. You rarely have flat, accessible surfaces evenly distributed across the site. My standard protocol:

Minimum 5 GCPs for sites under 10 hectares
8–12 GCPs for larger sprawling venues
Use high-contrast checkerboard targets (60 cm × 60 cm) visible at survey altitude
RTK base station positioned on a known benchmark or PPK correction applied post-flight
Always photograph each GCP from ground level with a GNSS rover for redundancy

Pro Tip: At remote sites without cellular data, pre-download your CORS correction data before heading to the field. Running PPK post-processing back at base is far more reliable than depending on real-time RTK corrections through a spotty satellite modem.

When Weather Turns: A Real-World Stress Test

During a three-day survey of a 47-hectare desert music festival venue outside Tucson, Arizona, day two threw the scenario every remote operator dreads. We launched at 0630 under clear skies, winds at 4 m/s, humidity at 12%. By 0740—halfway through the second photogrammetry pass—a monsoon cell developed with almost no warning.

Within 8 minutes, wind speed jumped from 6 m/s to 13.5 m/s. Visibility dropped as a wall of dust preceded the rain. Here's how the M400 responded:

Onboard wind compensation kept the aircraft within 0.3 m of its programmed flight line despite gusts hitting 14.2 m/s
The IP55-rated airframe handled the initial rain contact without triggering any moisture warnings
O3 transmission held steady at 34 Mbps even as atmospheric particulates increased
I triggered a manual RTH at 0748, and the M400 returned to its landing pad within 1.8 m of the takeoff point, fighting a direct headwind the entire way

The data captured before the abort was fully usable. Not a single image showed motion blur, and the overlap remained within photogrammetric tolerances. After the 45-minute storm passed, I hot-swapped batteries and resumed the mission—no recalibration needed.

That storm would have grounded every sub-5 kg platform I've previously operated at that site.

Technical Comparison: M400 vs. Competing Platforms

Feature	Matrice 400	Platform B	Platform C
Max Flight Time	55 min	42 min	38 min
Wind Resistance	15 m/s	12 m/s	10.7 m/s
Transmission Range	20 km (O3)	15 km	12 km
IP Rating	IP55	IP43	IP44
Hot-Swap Batteries	Yes	No	Yes
Data Encryption	AES-256	AES-128	AES-256
Max Payload Capacity	2.7 kg	2.1 kg	1.8 kg
BVLOS Ready	Yes (with waiver)	Limited	Yes (with waiver)
Dual Payload Mounts	Yes	No	Yes
Operating Temp Range	-20°C to 50°C	-10°C to 40°C	-15°C to 45°C

The M400's combination of AES-256 encryption, IP55 protection, and hot-swap batteries creates a platform that doesn't force compromises in any single critical area.

Common Mistakes to Avoid

1. Skipping the Pre-Mission Compass Calibration at New Sites Remote venues often sit near geological formations with magnetic anomalies. Skipping calibration at each new launch point invites GPS drift that ruins photogrammetry accuracy. Calibrate every time you move your takeoff position by more than 500 m.

2. Underestimating Battery Consumption in Dual-Payload Mode Running thermal and RGB simultaneously draws 18–22% more power than single-payload flight. If your mission plan was built around single-payload endurance figures, you'll trigger low-battery RTH mid-flight line.

3. Setting GCPs After the Flight This sounds obvious, but under time pressure at remote sites, teams often plan to "drop GCPs quickly" after the aerial survey. Post-flight GCP placement introduces positioning errors because you're rushing. Always set and survey GCPs before the first takeoff.

4. Ignoring O3 Channel Selection in RF-Congested Venue Areas Even remote venues during setup phases can have significant 2.4 GHz and 5.8 GHz interference from temporary communications equipment. Manually selecting the O3 transmission channel—rather than relying on auto—prevents mid-flight link degradation.

5. Flying Thermal Passes at the Wrong Time of Day Thermal signature differentiation between structures, ground, and subsurface features peaks during thermal crossover periods—typically early morning and late afternoon. Midday thermal passes produce washed-out, low-contrast data with minimal diagnostic value.

Frequently Asked Questions

Can the Matrice 400 operate BVLOS for large remote venue surveys?

The M400 is BVLOS-capable from a hardware and firmware standpoint, with O3 transmission maintaining reliable command links well beyond visual line of sight. Regulatory approval depends on your jurisdiction—in the U.S., you'll need an FAA Part 107 waiver with an approved operational plan. The M400's onboard ADS-B receiver and redundant flight systems strengthen waiver applications significantly.

How does photogrammetry accuracy compare when using PPK vs. RTK on the M400?

Both methods achieve sub-2 cm horizontal accuracy when combined with properly distributed GCPs. RTK provides real-time positioning feedback, which is useful for confirming coverage during the flight. PPK is more reliable in remote areas where base-station-to-rover communication is unreliable. For remote venue work specifically, I recommend PPK as the primary method with RTK as a bonus when conditions allow.

Is the hot-swap battery system truly seamless, or does the drone need to reboot?

The M400's hot-swap system maintains power through an internal buffer battery that keeps all systems—including the flight controller, transmission module, and payload gimbal—fully active during the swap. You have approximately 90 seconds to complete the exchange. The aircraft does not reboot, does not lose its GPS lock, and does not require re-initialization of the mission plan. It's genuinely seamless and one of the M400's most operationally significant features for remote fieldwork.

Final Verdict

The Matrice 400 isn't a drone that excels in one category while compromising in others. For remote venue capture—where you face unpredictable weather, vast survey areas, zero ground infrastructure, and strict data security requirements—it delivers across every operational dimension that matters. The combination of O3 transmission reliability, hot-swap endurance, IP55 weather resilience, and AES-256 data protection makes it the platform I now default to for every remote venue project.

After 23 sites, hundreds of flight hours, and one memorable monsoon, my confidence in this platform is built on field data, not marketing material.
