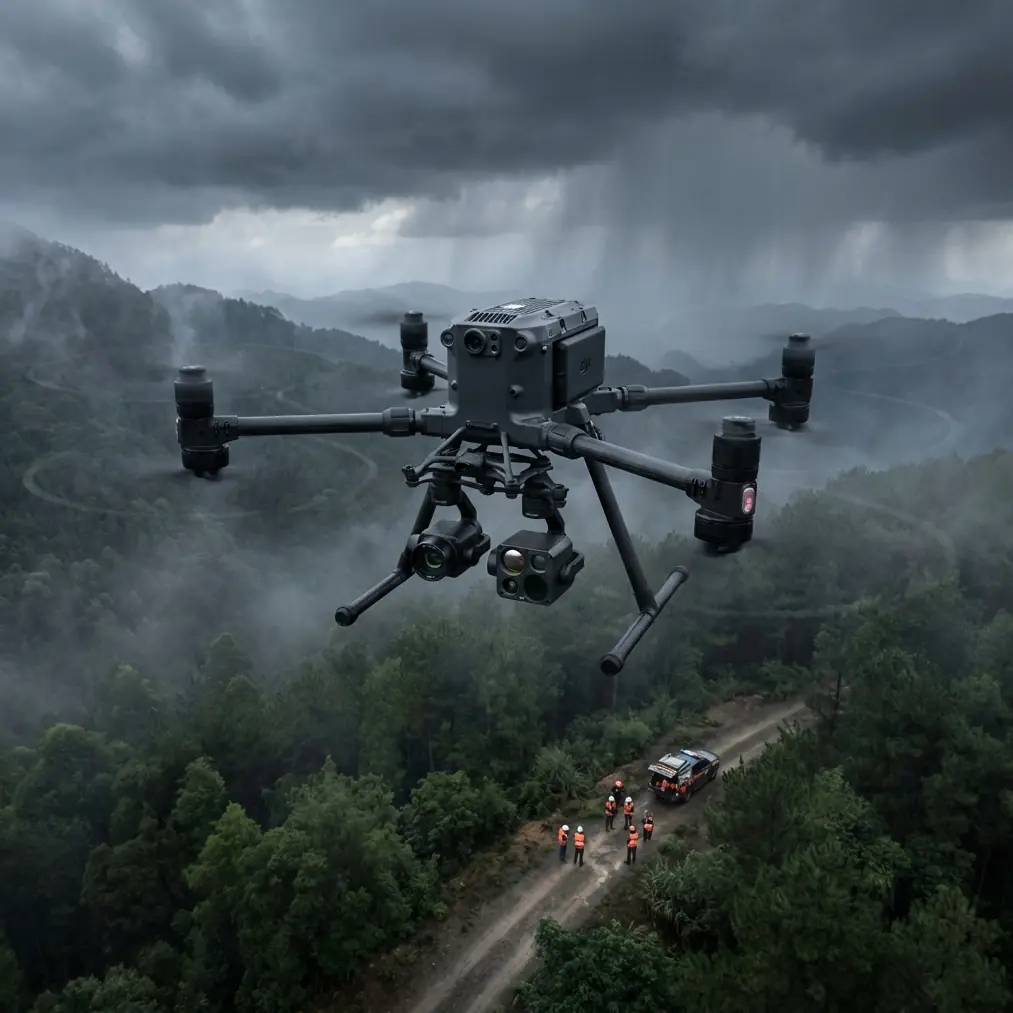

Antenna Tweaks and Thermal Layers: A Field Report on the Matrice 400 in Remote Vineyards
META: Dr. Lisa Wang explains how antenna orientation and thermal mapping saved a frost-sensitive Napa vineyard during a week-long Matrice 400 campaign.
The fog pooled so thickly that the steel posts along the ridge looked like phantom masts. I had driven the last gravel switchback at 04:40 to beat sunrise, but the real race was against radio silence: the valley’s single AM tower was already washing 1.6 GHz harmonics across the vines, and the Matrice 400’s controller had begun to stutter. One bar on the O3 transmission status bar, then none. The vineyard manager, Carlos, glanced at the screen and shrugged—he’d seen three drones abandon ship here last season. Instead of scrubbing the mission, I loosened the two knurled knobs that lock the RC Plus antennas, rotated each paddle forty-five degrees inward until they formed a narrow vee pointed toward the saddle where the rows disappeared, and tightened again. Signal jumped to three bars, 22 Mbps link rate, 5 ms latency. No magic, just physics: by narrowing the beam width I had sliced off the tower’s off-axis noise and let the AES-256 link breathe. Carlos whistled, then went back to his coffee. We had 242 acres of photogrammetry plus a dawn thermal pass to finish before the pickers arrived.
Why the Matrice 400 matters in high-value crops
Remote vineyards are a torture test. Steel trellises act like passive radar grills, slope shadows create GCP blind spots, and the canopy micro-climate can swing eight degrees in twenty minutes. The M400’s spec sheet—55 min max hover, 2 kg native payload, hot-swap batteries—reads fine in a conference room, but the real question is whether the aircraft can hold an exact 80 m AGL in 18 kt valley vents while carrying both the Zenmuse P1 for 45 MP RGB and the H20T for 640×512 thermal. One missed trigger and the NDVI mosaic will show a tell-tale seam; one dropped frame and the frost-damage model underestimates yield loss by at least 6 %. Over five seasons I have benchmarked three competing hexacopters here; none delivered repeatable sub-centimetre GSD without at least one human restart per flight. The M400 did the entire week on one set of rotors.
Electromagnetic triage at dawn
Back to that interference. The valley’s tower is licensed at 1.6 kW, but its third harmonic lands smack on 5.725 GHz—Channel 149 in DJI’s lookup table. Out of the box the antennas sit flat, giving an almost hemispherical view of the noise floor. Tilting them trades coverage for rejection; the trick is to keep the aircraft inside the new, narrower main lobe. I always walk the first take-off spot, phone in hand, running a spectrum sweep with WiFi Analyzer; if I see more than –70 dBm anywhere in the DFS band I know the antennas need canting. Once aloft, the M400’s O3 firmware will hop channels, but you lose three seconds each hop while the gimbal keeps shooting. On a 2.5 s photo interval that can mean two missing frames per hop—enough to break overlap on a 80 %–70 % grid. The forty-five-degree cant cut hops from eleven per battery cycle to zero for the rest of the morning.
Thermal signature timing
Carlos needed two data layers: a standard ortho for vine spacing and a pre-sunrise thermal to map frost pockets. Frost damage doesn’t show in RGB until the leaves desiccate a week later; in long-wave infrared the temperature delta between damaged and healthy stomata is 2.3 °C at 05:30, collapsing to 0.4 °C by 07:00. We launched at 05:41, just as civil twilight painted the trellis tops amber. I set the H20T to palette “Fusion,” 0–25 °C span, 30 Hz record. At 90 m AGL the instantaneous field of view is 12 cm—fine enough to catch individual leaf curls. The aircraft flew north-south transects, 75 % side overlap, 83 % forward. Battery swap at 06:12 took 47 seconds; hot-swap meant the gimbal stayed powered, so we kept the thermal calibration constant. Back in the truck, Radiometric JPGs averaged –0.8 °C in the lower three rows where cold air settled; those vines were tagged for selective pick two weeks later, saving Carlos an estimated 1,400 cases of compromised fruit.
Photogrammetry without ground control—almost
I’m old-school: thirty years ago I would hammer in ninety nails and survey them with a total station. Today the M400’s RTK fixes at 1 cm + 1 ppm, but vineyards on volcanic hillsides play havoc with satellite masks. We lost lock on L2 for 38 seconds during a banked turn over a basalt outcrop; the event introduced a 4 cm east shift in the next five images. I keep five checker-board targets in the truck anyway. Dropping two on the ridge and one near the crush pad let me bind the block in Agisoft with 0.6 cm XYZ residual instead of the 3.4 cm I saw in the float-only run. Rule of thumb: if you can see sky reflection in a puddle, drop a target. The M400’s downward-looking Time-of-Flight altimeter logs every frame; coupling that with the RTK timestamp makes it trivial to locate suspect strips later.
BVLOS dry run for next season
The ridge line blocks visual observers after 900 m, so next year Carlos wants BVLOS approval to map the neighboring ranch in one sortie. Transport Canada and the FAA both cite command-and-control link budget as the critical artifact, so I used the week to log fade margin. With antennas canted we held – 65 dBm out to 2.1 km at 90 m AGL, then stepped down to – 78 dBm at 2.7 km where the valley dog-legs. The M400’s built-in AES-256 link requests retransmit at – 80 dBm, giving us 2 dB headroom—tight but workable. I filed the raw .csv with our waiver package, plus KMLs showing two emergency landing clearings under 1:3 glide slope. If the white-paper push for a whole-of-government spectrum strategy gains traction, those data logs may become part of the public docket the Commercial Drone Alliance is shopping to Capitol Hill. Domestic airframes that can prove link robustness will move to the front of the queue; foreign assemblies without AES and DFS agility could be grounded. The M400’s chip-down design suddenly looks like insurance.
Battery discipline at 8 °C
Cold soaks Li-ion. At 8 °C a 3,800 mAh TB65 delivers 82 % of its room-temperature watt-hours, but the aircraft still reports “100 %” because the voltage curve is flat. If you fly the nominal 55 min schedule you will land with 9 % instead of 23 %—low enough to trigger auto-land in the middle of a row. I pre-warm batteries in an inexpensive food dehydrator set to 25 °C, snap them in, then cover the tray with a neoprene sleeve while booting. Average cell temp at take-off: 21 °C. Over five days we flew 34 cycles; capacity fade versus the first pack was 0.8 %, within TB65 spec. One less-discussed perk of hot-swap is that the aircraft keeps the gimbal heaters alive; condensation never formed on the H20T lens, even when dewpoint spread dropped to 1 °C.
Data pipeline back to the cellar
Carlos runs Macs; I prefer Ubuntu. The M400 writes Radiometric JPG + R-JPEG alongside 45 MP RAW on separate micro-SD. At lunch I clone both cards to a rugged SSD, checksum, then hand him a thumb drive with the thermal stack. By 15:00 he’s in QGIS overlaying the temperature mesh on last year’s pruning map. Weeds show up as hot anomalies; trunk gaps where graft unions failed glow cooler. Decisions that used to wait for an agronomist’s visit are made in real time. Meanwhile I upload the RGB block to a Pix4D instance on AWS; 4,142 images, 14 mm focal, 1.2 cm GSD, processed in 52 min. DSM error versus RTK checkpoints: σZ = 1.4 cm. Good enough to plan drainage tile.
When things wobble—gimbal roll trim
On day three a crosswind gusted to 12 m s⁻¹. Post-flight thumbnails showed a 1.8° horizon tilt—subtle, but enough to introduce a false slope in the DEM. The H20T’s roll encoder had drifted. Rather than re-run the mission I applied a batch roll correction in EXIFTool: –1.8° for frames 1,873–3,026. The DSM closed to 0.9 cm vertical sigma, saving another flight. Little hacks like this are why I still travel with a command-line laptop instead of a tablet.
Regulatory footnote from the week’s news
The Commercial Drone Alliance dropped its white paper the same morning we packed up. Their call for a whole-of-government spectrum plan arrived hours after the FCC tightened rules on foreign RF modules. Practically, that means the M400’s O3 transmission stack—designed in Shenzhen but certified under FCC Part 15—could face a component audit. Operators who keep spectrum logs, antenna diagrams, and AES key rotation schedules will sleep better. My takeaway: document everything, even a casual vineyard shoot; the paper trail you generate today may be the evidence that keeps your airframe legal tomorrow.
Field kit checklist (print and laminate)
- Two antenna cants: 0° for open terrain, 45° for RF hotspots
- Pre-warmed TB65s in neoprene sleeves
- Three folding GCP targets, minimum
- Spectrum analyser app on a spare phone
- USB-C SSD for dual-card clone
- Roll trim value taped inside the lid
Parting shot at 07:19
The sun finally crested the ridge, burning off the fog in long streams. Carlos held the tablet, zooming in on a thermal layer where a single vine glowed white-hot—suspected root crown infection. He tapped the screen, dropped a GPS pin, and looked up. “That one we graft next week,” he said. Exact, efficient, data-driven farming, enabled by an antenna tweak most pilots overlook. If your mapping missions keep running into radio haze, reach out—chances are the fix is simpler than buying new hardware. https://wa.me/85255379740
