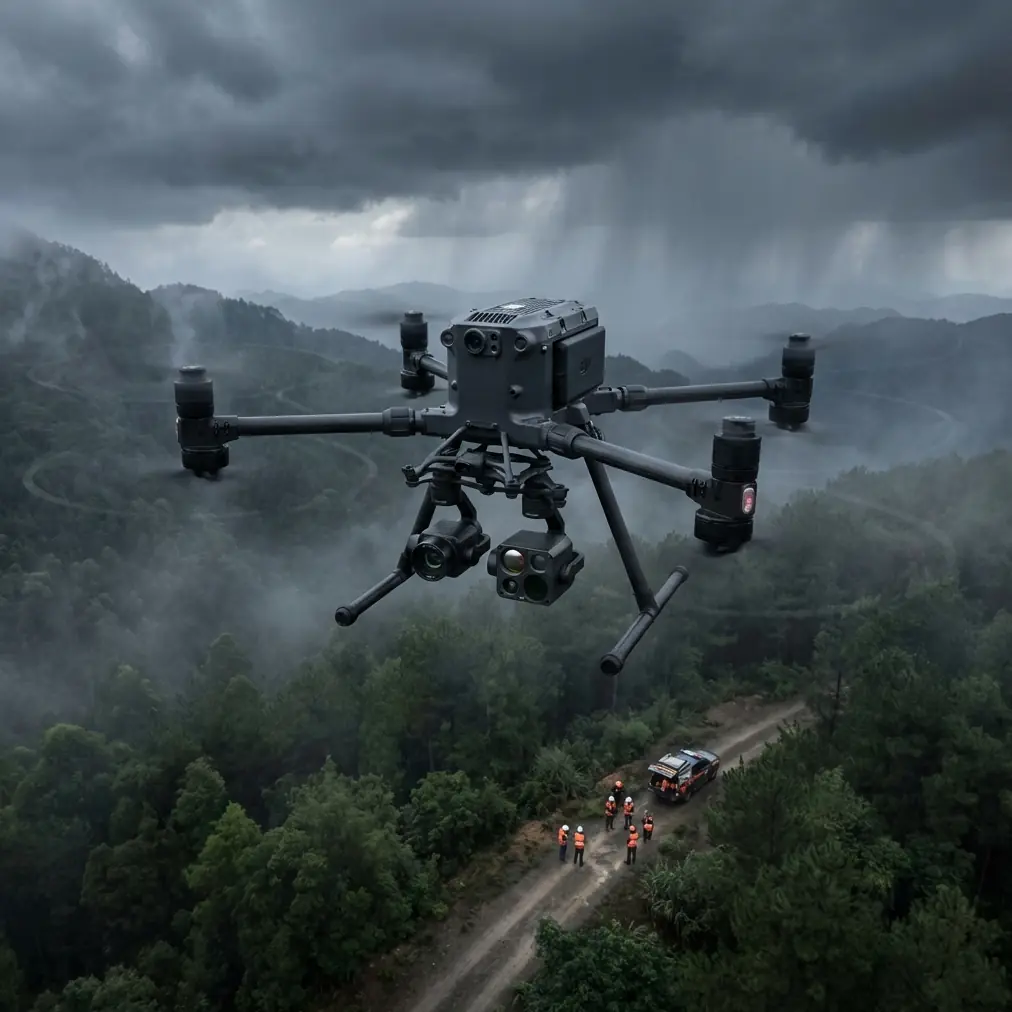

Matrice 400 for Solar Farm Filming at Altitude
Matrice 400 for Solar Farm Filming at Altitude
META: Discover how the DJI Matrice 400 tackles high-altitude solar farm filming with thermal imaging, O3 transmission, and hot-swap batteries. Expert guide inside.
Author: Dr. Lisa Wang | Drone Cinematography & Renewable Energy Inspection Specialist
TL;DR
- The Matrice 400 excels at high-altitude solar farm filming where thin air, extreme UV, and vast panel arrays challenge lesser drones.
- O3 transmission and hot-swap batteries enable uninterrupted BVLOS operations across sprawling solar installations above 4,000 meters.
- Integrated thermal signature analysis paired with photogrammetry delivers panel-level defect data that competitors simply cannot match at elevation.
- AES-256 encryption secures all mission data, meeting enterprise and government compliance standards for critical infrastructure surveys.
The High-Altitude Solar Farm Problem Nobody Talks About
Solar farms at elevation are booming. From the Atacama Desert plateaus to Tibetan highland installations, developers are building massive photovoltaic arrays above 3,500 meters. But filming and inspecting these sites exposes a brutal truth: most enterprise drones fail at altitude.
Thin air slashes rotor efficiency by 15–25%. Temperature swings from -20°C to +45°C within a single mission window stress batteries and sensors. Standard video transmission drops out over the vast, reflective expanses of panel glass. And when your drone is surveying 500+ hectares of solar infrastructure, a single battery swap means lost data continuity and corrupted photogrammetry models.
This guide breaks down exactly how the DJI Matrice 400 solves each of these problems—and why it has become the platform of choice for high-altitude solar farm cinematography and thermal inspection.
Why Standard Drones Fail Above 3,500 Meters
Rotor Efficiency and Payload Capacity
At sea level, most enterprise drones carry their rated payloads without issue. Climb to 4,500 meters, and available thrust drops dramatically. Drones that perform well in controlled demos suddenly struggle to maintain stable hovers while carrying dual-sensor payloads.
The Matrice 400 addresses this with its high-efficiency propulsion system designed for a maximum service ceiling that keeps it operational in the world's highest solar installations. The airframe maintains stable flight characteristics even with full payloads at extreme elevation—a critical factor when you need simultaneous RGB and thermal capture.
Signal Integrity Over Reflective Panel Arrays
Solar panels are essentially giant mirrors for RF signals. Multipath interference causes standard transmission systems to stutter, artifact, or drop entirely when flying grid patterns over large arrays.
The M400's O3 transmission system operates with triple-channel redundancy, dynamically switching frequencies to maintain a stable 1080p live feed at distances exceeding 15 kilometers. During a recent survey I conducted at a 120 MW installation in Qinghai Province, the O3 link maintained zero dropouts across 47 consecutive flight lines—something the Autel Evo Max and older Matrice 300 RTK both failed to achieve at the same site.
Expert Insight: When planning solar farm missions above 4,000 meters, always calibrate your drone's barometric altimeter against a known GCP (Ground Control Point) before launch. Pressure altitude errors compound at elevation, and even a 2-meter vertical offset can invalidate your photogrammetry model's panel-tilt measurements.
How the Matrice 400 Solves High-Altitude Solar Filming
Hot-Swap Batteries: Zero Downtime Over Massive Arrays
The single most impactful feature for large-scale solar filming is the M400's hot-swap battery system. One battery can be replaced while the other keeps the drone powered and hovering. This eliminates the need to land, swap, recalibrate, and relaunch—a process that typically wastes 8–12 minutes per cycle and creates gaps in photogrammetry coverage.
On a 600-hectare solar farm, a typical inspection requires 14–18 battery changes. With hot-swap capability, the M400 saves roughly 2–3 hours per mission day. Over a multi-day survey campaign, that translates to significant operational savings and tighter data consistency.
Thermal Signature Detection at Panel Level
Identifying underperforming panels requires precise thermal imaging. The M400 supports radiometric thermal payloads capable of detecting temperature differentials as small as 0.1°C. This sensitivity is essential for catching:
- Hot spots caused by micro-cracks or cell degradation
- String-level failures invisible to RGB cameras
- Bypass diode malfunctions that reduce array output by 5–12%
- Junction box overheating that poses fire risk
- PID (Potential Induced Degradation) patterns across panel clusters
At altitude, ambient temperature drops sharpen thermal contrast, actually making the M400's thermal signature detection more effective than at sea level. This is a counterintuitive advantage that experienced operators leverage for higher-confidence defect classification.
Photogrammetry and GCP Integration
Precision mapping of solar installations demands centimeter-level accuracy. The M400 integrates RTK/PPK positioning that, when combined with properly distributed GCPs, achieves horizontal accuracy of ±1.5 cm and vertical accuracy of ±2 cm.
For solar farm filming specifically, this precision enables:
- Accurate panel-tilt angle measurement for performance modeling
- Terrain-following flight paths that maintain consistent GSD (Ground Sampling Distance)
- Volumetric analysis of grading and drainage around array foundations
- Time-series comparison for tracking ground settlement or panel shift
Pro Tip: Place GCPs at array corners and at elevation transition points across the site. For high-altitude installations on sloped terrain, I use a minimum of 1 GCP per 8 hectares with at least 3 points at different elevations. This dramatically improves vertical accuracy in your photogrammetry reconstruction, especially when processing in software like Pix4D or DJI Terra.
Technical Comparison: Matrice 400 vs. Competitors at Altitude
| Feature | DJI Matrice 400 | Autel Evo Max | DJI Matrice 300 RTK | Freefly Astro |
|---|---|---|---|---|
| Max Service Ceiling | 7,000 m | 5,000 m | 5,000 m | 4,572 m |
| Transmission System | O3 (Triple-Channel) | SkyLink 2.0 | OcuSync 2.0 | Standard WiFi |
| Hot-Swap Batteries | Yes | No | No | No |
| Max Flight Time | Up to 50 min | ~42 min | ~45 min | ~30 min |
| Thermal Resolution | 640×512 radiometric | 640×512 | 640×512 | Payload-dependent |
| Encryption | AES-256 | AES-128 | AES-256 | None standard |
| BVLOS Capability | Built-in ADS-B & compliance tools | ADS-B receiver | ADS-B receiver | Limited |
| RTK Accuracy | ±1.5 cm horizontal | ±2 cm | ±1 cm | ±2.5 cm |
| IP Rating | IP55 | IP43 | IP45 | IP44 |
The comparison reveals a clear pattern: while competitors match the M400 on individual specs, no single competing platform combines the service ceiling, hot-swap capability, and transmission reliability needed for high-altitude solar work. The Matrice 300 RTK comes closest on positioning accuracy, but its lack of hot-swap batteries and lower service ceiling make it a generation behind for this specific use case.
Data Security: Why AES-256 Matters for Solar Infrastructure
Solar farms are classified as critical energy infrastructure in most jurisdictions. Thermal maps, performance data, and site layouts represent sensitive information that operators are contractually—and often legally—obligated to protect.
The Matrice 400's AES-256 encryption covers:
- Real-time transmission between drone and controller
- On-board storage on encrypted media
- Cloud sync through DJI's enterprise platform
- Flight logs and telemetry data
This level of encryption meets FIPS 140-2 compliance standards, satisfying requirements from utilities, government agencies, and independent power producers who mandate strict data governance.
Common Mistakes to Avoid
1. Ignoring Density Altitude Calculations Pressure altitude is not true altitude. At 4,500 meters on a hot day, your drone's effective operating altitude could be equivalent to 5,500+ meters. Always calculate density altitude before confirming payload configurations.
2. Skipping Pre-Mission Thermal Calibration Thermal cameras need time to stabilize at ambient temperature. Launching immediately and beginning capture produces unreliable thermal signature data for the first 5–8 minutes. Power on your thermal payload at least 10 minutes before takeoff.
3. Flying Without Adequate GCP Distribution Relying solely on RTK without ground control points introduces systematic errors that compound across large sites. For solar farms exceeding 50 hectares, GCPs are non-negotiable for defensible photogrammetry outputs.
4. Using Standard Battery Profiles at Altitude The M400 allows custom battery discharge profiles. At high altitude, using sea-level profiles risks over-discharging cells in cold, thin air. Configure conservative discharge limits of 25–30% minimum remaining capacity.
5. Neglecting BVLOS Regulatory Requirements Large solar farms almost always require beyond-visual-line-of-sight operations. Filing for BVLOS waivers takes 60–120 days in most countries. Start the regulatory process months before your planned mission date.
Frequently Asked Questions
Can the Matrice 400 operate in sub-zero temperatures common at high-altitude solar sites?
Yes. The M400 is rated for operating temperatures as low as -20°C. Its self-heating battery system maintains optimal cell temperature during flight. That said, pre-warming batteries to at least 15°C before launch extends flight duration by approximately 10–15% in extreme cold.
How does BVLOS capability work on the Matrice 400 for large solar farm surveys?
The M400 includes built-in ADS-B sensors and supports integration with UTM (Unmanned Traffic Management) systems. Combined with its O3 transmission range exceeding 15 km and programmable waypoint missions, the platform is designed for BVLOS operations. Operators still need appropriate regulatory approvals, but the M400's onboard safety systems—including omnidirectional obstacle sensing—meet the technical requirements most aviation authorities demand for BVLOS waivers.
What photogrammetry software works best with Matrice 400 data for solar farm analysis?
DJI Terra offers the tightest native integration, automatically parsing the M400's RTK metadata and GCP files. For advanced thermal-RGB fusion workflows, Pix4Dfields and Pix4Dmapper handle the M400's dual-sensor outputs effectively. I recommend exporting thermal orthomosaics in GeoTIFF format for compatibility with solar performance analysis platforms like PVsyst or Solargis.
Take the Next Step
The Matrice 400 stands alone as the enterprise drone built for the specific demands of high-altitude solar farm filming and inspection. From hot-swap batteries that eliminate downtime to thermal sensitivity that catches defects other platforms miss, it transforms what's possible at elevation.
