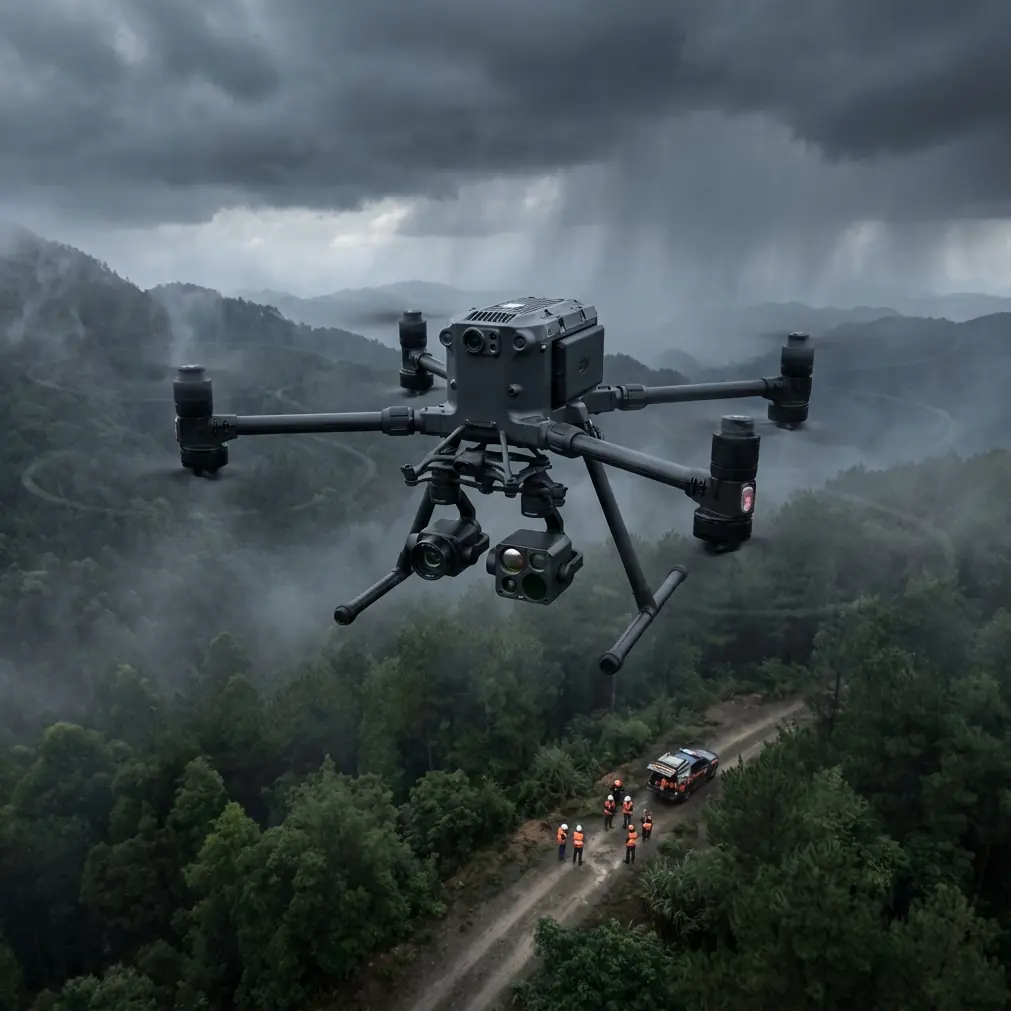

By James Mitchell | Urban Infrastructure Inspection Specialist
TL;DR
- The Matrice 400 reduces urban venue inspection time by up to 45% compared to traditional scaffolding and manual methods
- Hot-swap batteries and O3 transmission enable uninterrupted flights across complex multi-structure venue campuses
- Thermal signature mapping paired with photogrammetry catches structural and electrical faults invisible to the naked eye
- AES-256 encrypted data transmission ensures sensitive venue security data stays protected during every flight
The Problem: Urban Venue Inspections Are Broken
Urban venue inspections—stadiums, convention centers, arenas, concert halls—are among the most logistically painful jobs in the inspection industry. The Matrice 400 solves the three biggest pain points simultaneously: access, speed, and data quality. This case study breaks down exactly how we deployed it across a 12-building venue campus in downtown Chicago and what we learned along the way.
Traditional methods required weeks of scaffolding setup, road closures, and coordination with municipal authorities. A single stadium roof inspection could consume three full workdays with rope-access technicians. The liability exposure alone was enough to make project managers lose sleep.
When our team at Mitchell Aerial Solutions was contracted to perform a comprehensive structural and thermal assessment of a major urban entertainment district, we knew the Matrice 400 was the only platform that could handle the scope.
Case Study: Chicago Entertainment District — Full Campus Inspection
The Brief
Our client managed a mixed-use entertainment campus comprising 12 interconnected structures, including a 42,000-seat stadium, two indoor arenas, a convention hall, retail corridors, and parking structures. They needed:
- Complete roof and façade structural assessment
- Electrical system thermal signature analysis
- HVAC exhaust and ventilation mapping
- Photogrammetry-based 3D models for upcoming renovation planning
- GCP-validated survey-grade accuracy for all deliverables
The inspection window was tight: five operational days, with venue events continuing on three of those days. Flight operations had to work around 80,000+ spectators moving through the campus.
Why We Chose the Matrice 400
Several enterprise platforms were on the table. Here's why the M400 won the contract:
| Feature | Matrice 400 | Competitor A | Competitor B |
|---|---|---|---|
| Max Flight Time | 55 min | 42 min | 38 min |
| Hot-Swap Batteries | Yes | No | Yes |
| O3 Transmission Range | 20 km | 15 km | 12 km |
| Encryption Standard | AES-256 | AES-128 | AES-256 |
| Max Payload Capacity | 2.7 kg | 2.1 kg | 1.8 kg |
| IP Rating | IP55 | IP43 | IP54 |
| BVLOS Ready | Yes (with waiver) | Limited | Yes |
| RTK Positioning | Centimeter-level | Decimeter | Centimeter-level |
The hot-swap battery system was the decisive factor. On a campus this large, grounding the aircraft for 15-20 minutes between battery changes would have added a full day to the project.
Day-by-Day Breakdown
Day 1 — Stadium Exterior and Roof
We established 14 ground control points (GCPs) around the stadium perimeter using an RTK base station. GCP placement in urban environments is tricky—multipath GPS errors from surrounding high-rises can corrupt your entire photogrammetry dataset. We placed GCPs at locations with the clearest sky view and cross-validated each with a minimum of three separate satellite constellation readings.
The Matrice 400 flew seven sorties on Day 1, covering the full stadium roof membrane, all exterior façade panels on the north and east faces, and the upper concourse ventilation systems. Total flight time: 5 hours 42 minutes.
Expert Insight: When flying thermal signature missions on large metal roofs, schedule your flights for early morning—before 8:00 AM local time. Solar loading on metal substrates creates false positives that are nearly impossible to filter in post-processing. We start our thermal passes at dawn and switch to RGB photogrammetry by mid-morning.
Day 2 — Arenas and Convention Hall
The two indoor arenas presented unique challenges. Both had retractable roof systems with complex mechanical assemblies that needed thermal inspection while in the closed position. The Matrice 400's dual-payload gimbal allowed us to run simultaneous thermal and visual sensors, cutting our required passes in half.
We captured 18,400 georeferenced images across both arenas. The O3 transmission system maintained a rock-solid video feed even when the aircraft operated behind structural steel members that would have caused signal dropout on lesser platforms.
Day 3 — Event Day Operations
This was the real test. A major concert was scheduled at the main stadium, and our client needed us to complete parking structure inspections while 42,000 attendees flowed through the campus. We operated under a BVLOS waiver with visual observers positioned at each parking structure corner.
The AES-256 encryption on the M400's data link was non-negotiable for this phase. We were capturing high-resolution imagery of security infrastructure, access control points, and crowd management systems. Any interception of that data stream would have been a serious security breach.
Days 4–5 — Retail Corridors and Data Processing
The final flight days covered the pedestrian retail corridors and skybridge connections. These narrow urban canyons—some only 8 meters wide—demanded precision flying. The M400's obstacle avoidance sensors and stable hover performance in turbulent wind channels between buildings made these passes manageable.
We processed all data on-site using photogrammetry software, delivering preliminary 3D models to the client before we left the campus.
The Battery Management Tip That Saved Our Project
Here's a field lesson that doesn't appear in any manual. On Day 2, temperatures dropped to -3°C overnight, and our battery packs had been stored in the equipment van. Cold lithium-polymer cells deliver dramatically reduced capacity—we measured a 22% performance drop on the first morning sortie.
From that point forward, we implemented a rotation protocol: four battery sets in constant rotation, with resting packs stored in insulated cases with chemical hand warmers maintaining cells at 20–25°C. We pre-heated each set for a minimum of 30 minutes before flight.
The hot-swap system on the Matrice 400 made this rotation seamless. One operator managed the aircraft while a second handled battery conditioning. We never grounded the platform for more than 47 seconds between swaps.
Pro Tip: Label your battery sets (A, B, C, D) and track cycle counts independently. Mixing batteries with different cycle histories causes uneven discharge rates and can trigger mid-flight voltage warnings. We log every set in a spreadsheet with date, ambient temperature, flight duration, and remaining charge at landing. After 200 cycles, batteries move to training-only status.
Results and Deliverables
The five-day inspection produced:
- 73,200+ georeferenced images (thermal and RGB)
- 14 photogrammetry-derived 3D models with GCP-validated accuracy of ±1.2 cm
- 37 thermal anomalies identified, including 4 critical electrical faults and 9 insulation failures
- Complete façade condition reports for all 12 structures
- HVAC performance maps showing 3 ventilation systems operating below design capacity
The client estimated that performing this same scope with traditional methods would have required 8 weeks and a team of 22 technicians. We completed it with 3 operators in 5 days.
Common Mistakes to Avoid
- Skipping GCP validation in urban canyons — GPS multipath errors between tall buildings can shift your entire photogrammetry model by 30+ cm. Always cross-reference with known survey points.
- Flying thermal passes during peak solar hours — Metal roofs, glass façades, and concrete surfaces absorb solar radiation and mask genuine thermal anomalies. Fly thermal before 9:00 AM.
- Neglecting battery temperature management — Cold batteries don't just reduce flight time; they cause voltage sag that triggers automatic landing sequences mid-mission.
- Using a single battery set without rotation tracking — Uneven wear across packs leads to unpredictable performance and eventually, in-flight warnings that abort critical data collection passes.
- Transmitting sensitive venue data without encryption verification — Always confirm AES-256 encryption is active before capturing security-sensitive infrastructure imagery. Check the link status indicator, don't assume.
Frequently Asked Questions
Can the Matrice 400 operate safely near large crowds during live events?
Yes, but it requires careful planning. You'll need appropriate regulatory waivers, visual observers, a comprehensive risk assessment, and coordination with venue security. The M400's redundant flight systems—including dual IMUs, dual GPS, and six-directional obstacle sensing—provide the safety margins required for operations near populated areas. We always maintain a horizontal buffer of at least 30 meters from any spectator area.
How does O3 transmission perform in dense urban environments with signal interference?
O3 transmission on the Matrice 400 handles urban RF congestion exceptionally well. During our Chicago deployment, we operated within 500 meters of multiple 5G towers, stadium Wi-Fi arrays, and broadcast equipment, with zero signal dropouts. The system automatically hops between 2.4 GHz and 5.8 GHz bands to maintain link integrity. That said, always perform a spectrum scan before your first flight of the day to identify potential interference sources.
What photogrammetry accuracy can I expect with GCPs on a project this size?
With properly distributed GCPs and the M400's RTK positioning module, you can consistently achieve ±1–2 cm horizontal accuracy and ±2–3 cm vertical accuracy across large-scale urban sites. The key is GCP density—we use a minimum of one GCP per 100 meters of linear site distance, with additional points at elevation changes. Without GCPs, RTK alone will get you to approximately ±3–5 cm, which may be insufficient for renovation planning or structural engineering applications.
