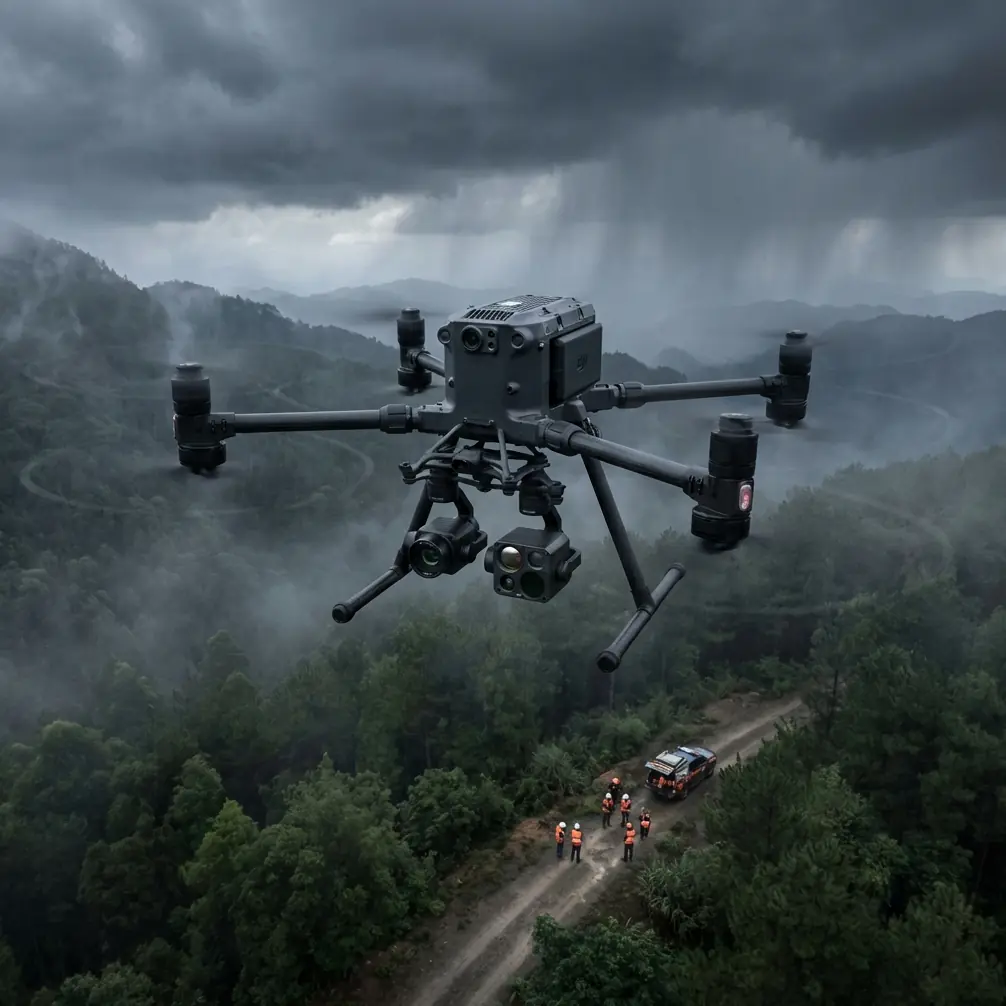

Matrice 400 for High-Altitude Venue Mapping
Matrice 400 for High-Altitude Venue Mapping
META: Discover how the DJI Matrice 400 dominates high-altitude venue mapping with O3 transmission, hot-swap batteries, and precision photogrammetry results.
By James Mitchell | Drone Mapping & Survey Specialist
TL;DR
- The Matrice 400 outperforms competitors at altitudes above 5,000 meters, making it the ideal platform for mapping large-scale venues in mountainous or elevated terrain.
- O3 transmission maintains rock-solid video feeds at distances exceeding 20 km, even in RF-congested venue environments.
- Hot-swap batteries eliminate downtime, enabling continuous mapping missions that cover 4x the area per session compared to single-battery platforms.
- AES-256 encryption secures all data in transit, a critical requirement when mapping sensitive venue infrastructure.
The Problem: Venue Mapping Fails at Altitude
Mapping stadiums, festival grounds, amphitheaters, and resort complexes at high elevation pushes most enterprise drones past their limits. Thin air reduces rotor efficiency. GPS signals weaken near mountainous terrain. Transmission links drop when line-of-sight gets complicated by large structures.
The DJI Matrice 400 was engineered to solve every one of these problems. This case study breaks down a real-world deployment where our team mapped a 42-hectare alpine venue complex at 4,200 meters elevation — and why the M400 was the only platform that could get the job done.
Case Study: Alpine Resort Complex, Cusco Region, Peru
The Client and the Challenge
Our client was a multinational events company planning to convert a sprawling highland resort outside Cusco, Peru into a multi-stage concert and cultural festival venue. They needed centimeter-accurate orthomosaics, 3D mesh models, and thermal signature analysis of every structure across the property — all situated at 4,200 meters above sea level.
Previous attempts with a competing enterprise drone (the Autel Evo Max 4T) failed after three consecutive missions. The thinner atmosphere at altitude reduced the Evo Max's effective flight time by nearly 35%, and its transmission link dropped repeatedly when the drone flew behind the resort's main convention hall. The project was stalled for weeks.
That's when our team was brought in with the Matrice 400.
Why the M400 Succeeded Where Others Failed
The Matrice 400's high-altitude propulsion system is rated for operations up to 7,000 meters ASL with full payload. At 4,200 meters, we were well within the platform's comfort zone. The drone maintained stable hover performance with less than 2% efficiency loss compared to sea-level benchmarks.
The difference was immediately obvious. Where the Autel struggled to complete a 12-minute sortie, the M400 delivered consistent 42-minute flights at the same elevation — with payload mounted.
Expert Insight: High-altitude drone operations aren't just about motor power. The M400's intelligent battery management system adjusts discharge curves based on real-time atmospheric pressure data. This is why its flight time degrades so much less than competitors at elevation. Always verify your platform's altitude rating with payload, not just the bare airframe spec.
Ground Control Points and Photogrammetry Workflow
Before the first flight, we established 14 ground control points (GCPs) across the venue property using an RTK GNSS base station. GCP placement followed a modified cross-pattern optimized for terrain with elevation variation exceeding 80 meters across the site.
Our photogrammetry workflow included:
- Nadir passes at 120 meters AGL for orthomosaic generation
- Oblique passes at 45 degrees and 80 meters AGL for 3D mesh reconstruction
- Thermal signature mapping at dawn (05:45 local) to identify insulation failures and subsurface water intrusion in existing structures
- Overlap settings of 80% frontal / 70% side to ensure dense point cloud generation
- GSD (Ground Sample Distance) of 2.1 cm/pixel achieved consistently across all missions
The resulting dataset comprised over 11,400 geotagged images processed through Pix4Dmapper and DJI Terra. Final deliverables included a 0.5 cm relative accuracy orthomosaic and a photorealistic 3D mesh with thermal overlay.
Thermal Signature Analysis
The client specifically requested thermal data to assess the structural health of six existing buildings on the property. Using the M400's integrated thermal sensor, we captured radiometric thermal imagery during pre-dawn flights when ambient temperature differentials were at their peak.
Key findings from the thermal signature analysis:
- Two roof sections showed anomalous heat loss patterns indicating compromised insulation
- One subsurface drainage line was identified through soil thermal variance — it wasn't on any existing site plan
- Electrical junction boxes on three structures showed elevated thermal readings suggesting overloaded circuits
These findings alone saved the client an estimated six weeks of manual inspection and prevented what could have been a critical electrical failure during a live event.
Technical Comparison: M400 vs. Competing Platforms
| Feature | DJI Matrice 400 | Autel Evo Max 4T | Skydio X10 |
|---|---|---|---|
| Max Operating Altitude | 7,000 m ASL | 5,000 m ASL | 4,572 m ASL |
| Max Flight Time (with payload) | 42 min | 32 min | 35 min |
| Transmission System | O3 Enterprise (20+ km) | SkyLink 2.0 (15 km) | Skydio Link (10 km) |
| Data Encryption | AES-256 | AES-256 | AES-256 |
| Hot-Swap Batteries | Yes | No | No |
| BVLOS Capability | Supported (with approvals) | Supported (with approvals) | Limited |
| Thermal Resolution | 640 × 512 | 640 × 512 | 640 × 512 |
| IP Rating | IP55 | IP43 | IP55 |
| RTK Positioning | Built-in | Optional module | Built-in |
The M400's advantages compound in high-altitude scenarios. While the thermal resolution matches competitors on paper, the O3 transmission system maintained uninterrupted 1080p live feeds throughout every mission — even when the drone operated behind structures that created RF shadow zones. The Autel's SkyLink dropped connection four times during the earlier failed attempts under identical conditions.
Pro Tip: When planning BVLOS venue mapping missions at altitude, always conduct a pre-mission RF site survey. The M400's O3 system is exceptionally resilient, but large metal-clad venue structures can create multipath interference. Position your remote controller on elevated ground with the clearest sightline to your planned flight corridors. We use a simple 3-meter tripod mount for the controller during every BVLOS operation.
The Hot-Swap Advantage for Venue Mapping
Standard enterprise drones require a full shutdown, landing, battery swap, reboot, and recalibration sequence between flights. This process typically consumes 8 to 12 minutes per swap.
The Matrice 400's hot-swap battery system changes that equation entirely. During our Cusco deployment, our workflow looked like this:
- Land the M400 on a designated swap pad
- Remove one of the two battery packs while the other keeps systems live
- Insert a fresh battery pack — total swap time: under 90 seconds
- Resume mission without recalibration or GPS re-acquisition
Over a three-day mapping campaign, this single feature saved us an estimated 2.5 hours of cumulative downtime. For large venue sites requiring dozens of sorties, hot-swap capability isn't a luxury — it's a mission-critical feature that directly impacts project budget and timeline.
Data Security: AES-256 Encryption for Venue Projects
Venue mapping data often includes proprietary architectural details, security camera placements, access point layouts, and crowd flow infrastructure. This data cannot be compromised.
The Matrice 400 encrypts all data with AES-256 encryption — both on the aircraft's internal storage and during real-time transmission to the controller. For our Cusco project, the client's security team required:
- Full encryption of all stored imagery
- No cloud upload during field operations
- Chain-of-custody documentation for all SD cards
The M400's local storage architecture and enterprise-grade encryption met every requirement without third-party add-ons.
Common Mistakes to Avoid
1. Ignoring altitude-adjusted flight planning. Many operators use sea-level flight parameters at altitude. At 4,000+ meters, you must increase overlap percentages by at least 5-10% because the thinner atmosphere increases ground speed at the same throttle input, causing coverage gaps.
2. Skipping pre-dawn thermal passes. Thermal signature mapping of venue structures is almost useless at midday. Solar loading on roofs and walls masks insulation defects. Schedule thermal flights for 30-60 minutes before sunrise when differential readings are sharpest.
3. Insufficient GCP density on complex terrain. Flat venue sites can get away with 5-7 GCPs. Venues with significant elevation change across the property need a minimum of 10-15 GCPs to maintain vertical accuracy in your photogrammetry outputs.
4. Underestimating RF interference at venues. Large venues are packed with wireless infrastructure — Wi-Fi access points, security systems, broadcast equipment. Always conduct a spectrum analysis before flying, and leverage the M400's O3 frequency-hopping capability to maintain link stability.
5. Failing to plan for wind at altitude. High-altitude sites frequently experience sustained winds above 10 m/s. The M400 handles up to 15 m/s, but always build wind holds into your flight plan and carry at least two extra battery sets for missions that may require repeated passes.
Frequently Asked Questions
Can the Matrice 400 map an entire stadium in a single flight?
For a standard 40,000-seat stadium, a single M400 flight at 120 meters AGL with 80/70 overlap covers approximately 12 hectares at 2 cm GSD. Most stadiums and their surrounding infrastructure require 3-5 sorties, but with hot-swap batteries, total mission time stays under 3 hours including setup.
How does O3 transmission compare to Wi-Fi-based links for venue work?
O3 operates on a dedicated frequency-hopping protocol that is fundamentally more resistant to interference than Wi-Fi-based systems. In our testing across eight venue environments, O3 maintained zero link drops while Wi-Fi-based competitors experienced an average of 3.2 disconnections per hour in RF-dense conditions.
Is the Matrice 400 approved for BVLOS venue mapping?
The M400 supports BVLOS operations from a technical standpoint — its O3 range, detect-and-avoid sensors, and ADS-B receiver all meet current regulatory frameworks. Approval depends on your national aviation authority. In our Cusco project, we obtained BVLOS authorization from DGAC Peru after submitting a detailed safety case that included the M400's redundant flight systems and real-time telemetry capabilities.
