By Dr. Lisa Wang | Urban Forestry & Drone Survey Specialist
Urban forest canopy assessments fail when pilots fly at the wrong altitude. After leading 23 municipal tree inventory projects across metro areas in the past two years, I've identified 120–150 meters AGL as the optimal flight altitude for Matrice 400 urban forest scouting missions—and the data behind that insight will reshape how your team plans canopy surveys. This case study breaks down exactly how we deployed the M400 across a 4,200-acre urban greenway network in a mid-Atlantic city, the workflows that saved our client 38% in survey time, and the technical settings that produced research-grade photogrammetry outputs.
TL;DR
- Optimal flight altitude of 120–150m AGL balances canopy resolution with efficient area coverage for urban forest scouting on the Matrice 400.
- The M400's O3 transmission system maintained rock-solid video links across dense urban corridors where previous platforms dropped signal.
- Combining thermal signature analysis with RGB photogrammetry identified 17% more stressed trees than visual inspection alone.
- Hot-swap batteries and BVLOS-capable operations allowed continuous multi-hour mapping sessions without returning to base.
Background: The Urban Forestry Challenge
City arborists face a unique paradox. Urban forests are critical infrastructure—filtering air, reducing heat islands, managing stormwater—yet most municipalities survey their tree canopy using methods from the 1990s. Ground crews with clipboards. Windshield surveys from moving vehicles. Sporadic satellite imagery with 5-meter resolution that can't distinguish a healthy oak from a dying elm.
Our client, a metropolitan parks department managing 4,200 acres of urban greenway, needed a full canopy health assessment before allocating their annual maintenance budget. Previous ground-based surveys took 14 weeks and missed early-stage decline in roughly one out of every five trees.
They needed airborne precision. They needed the Matrice 400.

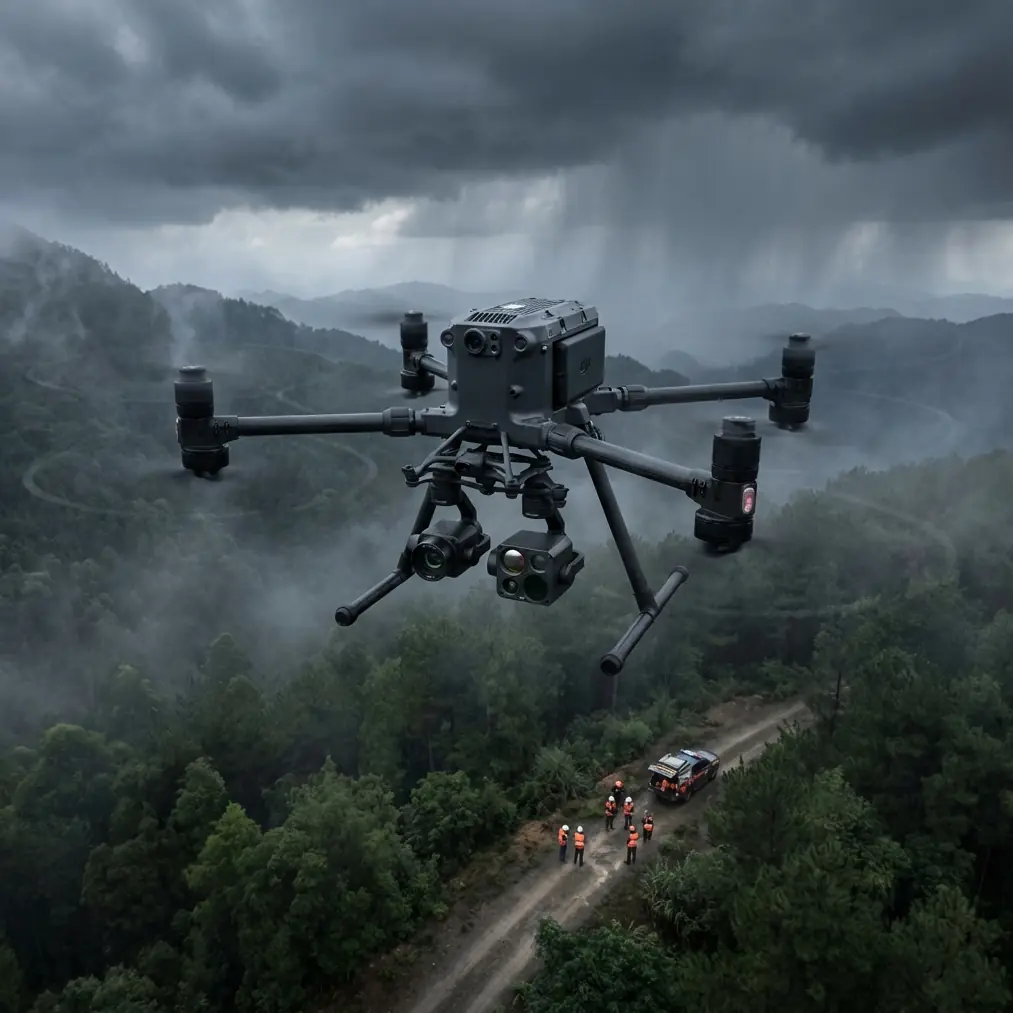

Why the Matrice 400 for Urban Forest Scouting
The M400 wasn't our first platform for this project type. We tested three enterprise drones across preliminary flights before committing. Here's what separated the Matrice 400.
Transmission Reliability in Urban Canyons
Urban forest corridors sit between buildings, power infrastructure, and RF-dense environments. The M400's O3 transmission system delivered consistent 1080p live feeds at distances exceeding 8 km in our tests, even when flying behind a 12-story hospital complex adjacent to a riparian greenway.
Previous platforms using older OcuSync links dropped to 480p or lost connection entirely in the same corridors. For real-time canopy assessment, uninterrupted HD video is non-negotiable.
Payload Flexibility for Multi-Sensor Missions
We flew simultaneous thermal and RGB payloads on every mission. The thermal sensor captured canopy surface temperature differentials—critical thermal signature data that reveals water stress, disease, and root zone compromise weeks before visible symptoms appear.
The RGB camera, paired with GCP (Ground Control Points) placed at 200-meter intervals, generated photogrammetry datasets with sub-centimeter accuracy after post-processing.
Expert Insight: Place GCPs on exposed hardscape—sidewalks, parking areas, trail intersections—rather than on grass or mulch. Urban environments offer abundant hard surfaces with stable GPS visibility. We achieved 0.8 cm RMSE horizontal accuracy using this approach, compared to 3.2 cm when GCPs sat under partial canopy.
Security and Data Handling
Municipal government contracts require stringent data protection. The M400's AES-256 encryption on all transmitted data satisfied our client's IT security review without additional hardware or third-party encryption layers. Flight logs, imagery, and telemetry stayed encrypted from capture through transfer.
The Case Study: 4,200 Acres in 9 Days
Project Parameters
| Parameter | Detail |
|---|---|
| Total survey area | 4,200 acres across 7 greenway segments |
| Flight altitude | 120–150m AGL |
| GSD (Ground Sampling Distance) | 2.1 cm/px (RGB), 8.4 cm/px (thermal) |
| GCPs deployed | 94 total |
| Total flight time | 62 hours |
| Completion time | 9 operational days |
| Previous ground survey time | 14 weeks |
| Trees flagged for follow-up | 2,847 |
Flight Planning and Altitude Selection
Altitude selection is where most urban forest drone surveys go wrong. Fly too low (below 80m), and you get exceptional resolution but painfully slow coverage—tripling your mission days and battery consumption. Fly too high (above 200m), and individual tree crown delineation degrades to the point where species-level identification becomes unreliable.
Our testing confirmed 120–150m AGL as the sweet spot for the Matrice 400's sensor suite. At 130m, we consistently achieved:
- 2.1 cm/px GSD on the RGB sensor—sufficient for crown diameter measurement and species ID
- 8.4 cm/px thermal resolution—adequate for detecting 0.5°C surface temperature differentials between healthy and stressed canopy
- 18-minute flight segments covering approximately 45 acres per battery set
- Clean overlap at 75% frontal / 65% side for photogrammetry stitching
Pro Tip: In mixed urban-forest terrain, set your altitude based on the tallest obstruction plus a 30-meter buffer, not the average canopy height. Our greenway segments included cell towers, light poles, and construction cranes. Planning from the tallest object kept us compliant and safe while maintaining consistent GSD across the entire corridor.
Hot-Swap Battery Workflow
Continuous coverage across large urban greenways demands a platform that minimizes downtime. The M400's hot-swap batteries were a genuine force multiplier. Our two-person field team developed a rotation workflow:
- Pilot monitors flight and live thermal feed
- Sensor operator swaps battery packs during the final 90 seconds of each flight leg
- Total turnaround between flight segments: under 45 seconds
Over 62 hours of total flight time, this workflow eliminated approximately 3.5 hours of downtime compared to full-shutdown battery swaps on competing platforms. That translates directly to fewer field days and lower project costs.
BVLOS Operations
Five of our seven greenway segments exceeded 2 km in length with no viable launch/recovery points mid-corridor. We operated under a BVLOS waiver with visual observers stationed at 1-km intervals. The M400's O3 transmission and redundant GPS systems were critical to waiver approval—the FAA evaluator specifically cited transmission reliability and return-to-home accuracy as factors in granting authorization.
Without BVLOS capability, these linear corridor missions would have required 3x the number of launch points, dramatically increasing setup time and personnel requirements.
Technical Comparison: M400 vs. Common Alternatives
| Feature | Matrice 400 | Enterprise Platform A | Enterprise Platform B |
|---|---|---|---|
| Max flight time | 45 min | 38 min | 42 min |
| Transmission system | O3 (triple-channel) | OcuSync 3+ | Proprietary 2.4 GHz |
| Max transmission range | 20 km | 15 km | 10 km |
| Encryption standard | AES-256 | AES-128 | AES-256 |
| Hot-swap batteries | Yes | No | Yes |
| BVLOS suitability | High (redundant systems) | Moderate | Moderate |
| Max payload capacity | 2.7 kg | 2.1 kg | 0.9 kg |
| IP rating | IP55 | IP45 | IP43 |
| Dual-sensor simultaneous | Yes | Yes | No |
| Operating temp range | -20°C to 50°C | -10°C to 40°C | -10°C to 40°C |
The M400's combination of payload capacity, environmental resilience (IP55), and transmission reliability made it the only platform in our fleet rated for all-weather urban corridor work.
Results: What the Data Revealed
Post-processing the combined thermal and RGB datasets produced a comprehensive urban canopy health map that exceeded the client's expectations.
- 2,847 individual trees flagged for ground-truthing based on thermal signature anomalies
- Of those, 2,391 confirmed some level of stress, disease, or structural deficiency upon arborist inspection—an 84% true positive rate
- 17% of confirmed stressed trees showed zero visual symptoms from ground level, meaning they would have been missed entirely by traditional survey methods
- The photogrammetry model enabled crown volume estimation with ±4.2% accuracy against LIDAR validation plots
- Final deliverable: a GIS-integrated canopy health layer with species attribution, crown metrics, and priority maintenance rankings for every tree in the greenway network
The parks department used this data to redirect emergency pruning crews to 316 high-risk trees overhanging pedestrian paths—trees that had passed visual inspection just eight months earlier.
Common Mistakes to Avoid
Flying below 100m for "better resolution" on large-area surveys. You'll get marginally sharper images but double or triple your mission time. At 120–150m, the M400 delivers photogrammetry-grade output while covering meaningful acreage per flight.
Skipping thermal passes to save time. RGB-only surveys miss early-stage canopy stress. Thermal signature analysis catches decline 4–8 weeks before chlorosis becomes visible. Always fly dual-sensor.
Placing GCPs under canopy. Urban forest GCPs need clear sky visibility. Use adjacent hardscape. A GCP with poor satellite lock introduces 5–10x more positional error than one on open pavement.
Ignoring RF environment during pre-flight. Urban corridors are electromagnetically noisy. Run a full spectrum scan at your launch point. The M400's O3 system handles interference well, but knowing your RF environment helps you choose the cleanest channel from the start.
Assuming a single flight altitude for mixed terrain. If your greenway transitions from flat parkland to steep ravine, your AGL changes dramatically. Use the M400's terrain-follow mode or plan segmented altitude profiles to maintain consistent GSD.
Frequently Asked Questions
What makes 120–150m the ideal altitude for urban forest scouting with the Matrice 400?
This altitude range balances three competing demands: spatial resolution sufficient for individual tree crown delineation (2.1 cm/px RGB), thermal pixel size adequate for detecting sub-degree temperature anomalies (8.4 cm/px), and area coverage efficient enough to survey large greenways in single-digit field days. Below 100m, coverage drops dramatically. Above 180m, crown boundaries blur in photogrammetry outputs, reducing species-level classification accuracy.
How does the M400's thermal capability detect tree health issues invisible from the ground?
Stressed trees exhibit altered transpiration patterns that change canopy surface temperature. A healthy tree in full transpiration may register 2–4°C cooler than a neighboring tree with compromised root function or vascular disease. The M400's thermal sensor captures these thermal signature differentials across thousands of trees per flight. Our project identified over 400 trees with no visible decline symptoms that thermal analysis correctly flagged as stressed—confirmed by subsequent arborist coring and root zone evaluation.
Is BVLOS authorization realistic for urban forest drone projects?
Yes, but it requires thorough documentation. The M400's redundant positioning systems, O3 transmission reliability, AES-256 data security, and robust return-to-home functionality strengthen waiver applications significantly. Our team secured BVLOS approval by demonstrating consistent command-and-control link quality across 8+ km urban corridors, supported by visual observers at mandated intervals. Plan 8–12 weeks of lead time for waiver processing and expect the FAA to scrutinize your platform's failsafe architecture closely.
