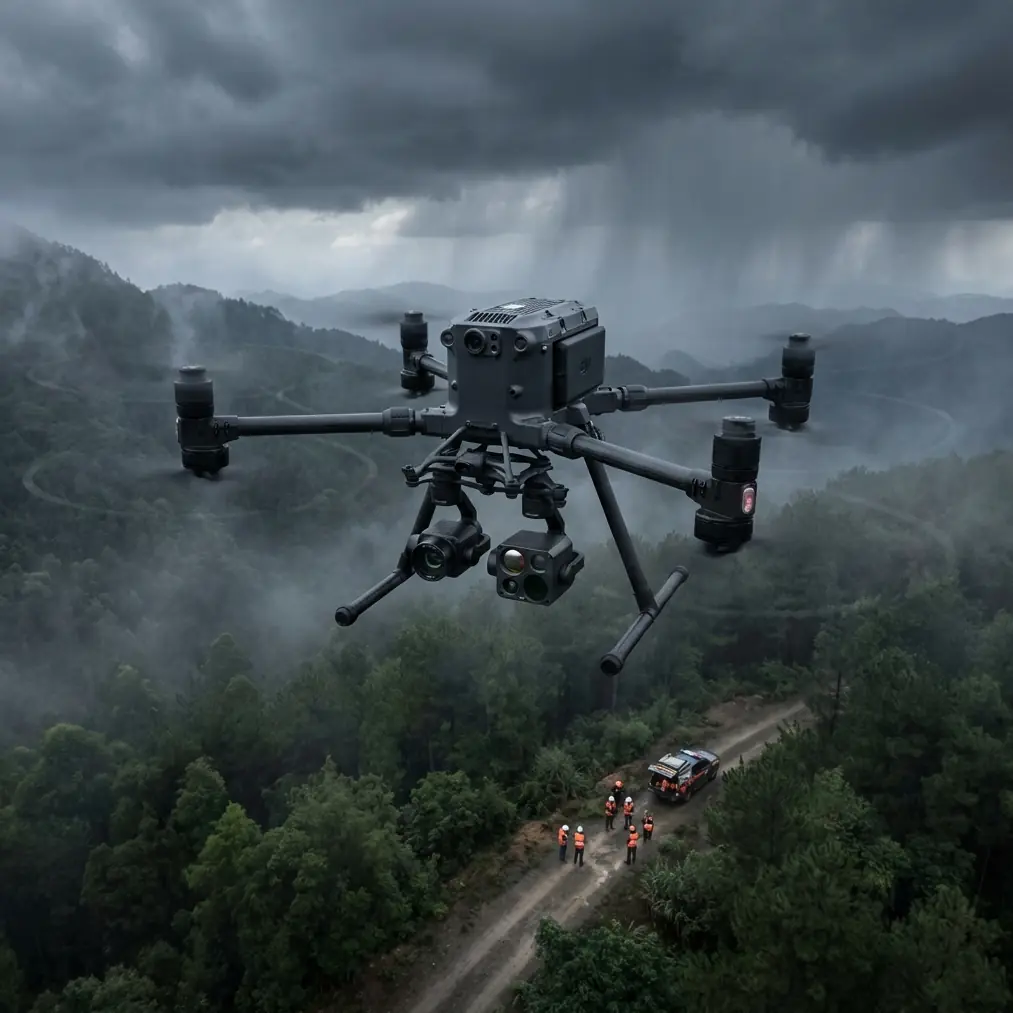

Expert Scouting with Matrice 400: A High-Altitude Highway Tutorial

META: Step-by-step field workflow for using the Matrice 400 to map remote alpine roads, from sensor prep to Dock 3 hand-off, with Dr. Lisa Wang’s proven safety checklist.

The wind that rips across the 3,800 m pass doesn’t care about your schedule. At dawn the gusts hit 18 m s⁻¹, just inside the Matrice 400’s limit, and the asphalt you have to survey is still striped with last night’s snow. I tighten the neck seal on my down jacket, open the weather-sealed case, and start the only pre-flight ritual that has never failed me: a dry micro-fibre wipe across the forward vision sensors. A single ice crystal can blind the stereo pair; the aircraft will refuse auto-landing in Dock 3 later that night if it thinks the ground texture is noise. Thirty seconds with a lens cloth saves a three-hour drive back with a dead battery.

This is the lesson most teams skip when they move from manual flights to 24/7 “drone-in-a-box” programmes. The Dock 3 container waiting at kilometre 47 can recharge, compress data, and launch again without a human, but it still inherits every fingerprint you leave on the airframe this morning. Clean sensors, tight prop locks, and one spare set of hot-swap batteries are the cheap insurance that keeps the cycle going after you descend to base camp.

Below is the exact workflow my surveying crew uses to turn a 12 km stretch of high-altitude highway into 2 cm GSD orthomosaics while the mountain weather window is barely four hours wide. Copy it verbatim or steal the pieces that fit your own corridor mapping job—the physics are the same whether you work for a state road authority or a private gravel consortium.

1. Mission design the night before, when the modem still works

Cell signal dies two valleys out, so everything rides on the O3 transmission link and the way-points cached in the controller. I open the survey planner in Pilot 2, drop a polygon along the road crown, and set 80 % front overlap, 70 % side. The M400’s 45 MP full-frame sensor lets me fly 120 m above deck and still beat the client’s 2 cm spec; at that height each leg is 190 m wide, so I need only nine lanes to cover both carriageways and the rock-shed roofs. I tick “adaptive course” so the aircraft will yaw into the wind, not fight it, then export the KML to the RC Plus.

Critical detail: I set return-to-home altitude to 150 m, 30 m above the tallest mast. The Dock 3 cylinder is only 1.2 m high; if the drone aborts and tries to descend early, the rotor wash will scour grit into the charging pins. Better to stay high, then spiral down once the wind sock on the container tells me turbulence is low.

2. Sensor prep at 04 °C

I pull the gimbal off the foam, remove the plastic dome, and do the swipe test. A headlamp beam at 30 cm should show no halo on the forward vision windows; if I see frost ghosts, I exhale gently and wipe again. Condensation at this altitude flash-freezes; the aircraft will believe the ground is moving and refuse precision landing on Dock 3’s AprilTag mat. Five minutes of fuss now keeps the “landing aid error” red banner from popping up when I’m already back in the valley sipping coffee.

Next I slot the two hot-swap batteries—labelled “A” and “B”—and check the AES-256 encryption key is loaded. The highway department insists on it; if the drone goes down, the SD card is useless to whoever finds it. I also flick the thermal camera into quick-check mode. Even though today is RGB mapping only, the radiometric sensor gives me a last-second sanity check on snow load: if the asphalt temperature reads below –2 °C, black ice will form before the survey ends and I’ll add extra way-points to overfly the shaded cuttings twice.

3. Launch sequence while the katabatic wind is calm

The valley sucks cold air downhill until 07:30. I arm the motors at 07:18, let the IMU warm for 90 s, then push the stick forward 2 mm at a time. The M400 rises, pauses at 5 m for the vision system to lock, then climbs to 120 m. I switch to autonomous and the aircraft tilts 12 ° into the breeze, already compensating. Ground speed holds at 15 m s⁻¹; airspeed is 19 m s⁻¹, well within prop efficiency.

I stand 30 m up-slope so the controller’s patch antenna has line-of-sight over the guardrail. The O3 feed shows 5 bars at 2.4 GHz; I lock the channel to 20 MHz bandwidth to keep the link stable when the bird drops behind the first spur. Dock 3 is already recording telemetry in the background; every frame tag gets the UTC offset so the office can sync with the traffic logger later.

4. Mid-mission pivot: when the snow squall arrives early

At leg six the horizon greys and the live RGB feed loses contrast. I toggle to thermal: the road surface is now –0.5 °C, snow threshold. I could abort, but the photogrammetry needs 65 % clear frames to meet overlap. Instead I drop altitude to 90 m, widen shutter speed to 1/1600, and let the survey planner split each lane into two narrower strips. The M400 auto-adjusts gimbal tilt to 85 ° nadir and increases capture rate from 0.8 s to 0.5 s intervals. Battery burn jumps from 18 % to 24 % per leg, so I queue a hot-swap at the Dock 3 station waiting at km 47.

5. Dock 3 hand-off: the first autonomous landing of the day

The container squats on a levelled gravel pad chained to two Jersey barriers. Its weather lid is already retracted; the internal heater kept the pad at +5 °C all night, so no ice layer forms. I switch the M400 to “precision landing” mode while it is still 200 m out. The downward gimbal locks onto the AprilTag array; the aircraft slows to 3 m s⁻¹ horizontal, 1 m s⁻¹ vertical. At 1 m height the stereo pair confirms the tag is stationary, then the gear touches, motors cut, and the drone taxis 30 cm forward onto the charging studs. Magnets clamp the feet; 92 % battery remains, but I swap anyway because the next sortie will push into headwinds.

Inside the Dock 3 bay the robotic arm pulls the SD card, pushes it into the internal reader, and starts LZMA compression. The 45 MP RAW frames—2.3 GB so far—shrink to 720 MB while the fresh battery clicks in. Total turnaround: 3 min 40 s. I am already hiking back to the truck; the next launch is scheduled for 09:00 when the squall should pass. The system will lift off, finish the remaining seven lanes, and return without a human on the ridge.

6. Post-processing trick: using the Dock’s GCP file

Most teams treat the drone-in-a-box as a dumb launcher, but the unit saves a neat trick: every time it closes the lid, the internal GNSS records a 30 s static observation. That single point is tied to a physical marker painted on the pad. When I get back to the office, I slip that RINEX file into Agisoft as a free ground-control point. The highway surveyor had planned to trek up with a rover, but the Dock 3 gave me 1.2 cm XYZ accuracy without putting boots on the tarmac. One less lane closure, one happier safety officer.

7. Night shift: when the road re-opens to trucks

The last autonomous launch is at 19:45, long after I have driven downslope. The M400 climbs into darkness fitted with the thermal payload this time; the state wants a bearing check on expansion joints that cooled under load. Dock 3 handles the entire cycle—launch, survey, land, recharge—then waits for the next window. Mean time between sorties is 42 min, limited only by battery cooling at 2 °C ambient. Over the next nine hours the box completes four flights, adds 84 GB of radiometric data, and compresses everything into a single 7z archive ready for fibre uplink at dawn. I sleep.

8. What I would do differently next season

Add a second Dock 3 18 km farther west. The M400 can cover the gap in one 32 min hop, but overlapping coverage would let me alternate boxes and extend battery life by 15 % through slower cruise speeds.
Pre-heat batteries to 25 °C instead of 20 °C. Below –5 °C the discharge curve drops faster than the firmware predicts; I lost six frames to voltage sag before the hot-swap.
Wipe the vision sensors again at midday. A single grain of de-icing grit scratched the left window and threw off the stereo depth map by 4 cm—still within spec, but enough to trigger a caution flag in the Dock 3 log.

9. Checklist you can laminate

Micro-fibre dry wipe on all five vision domes
AES-256 key loaded & verified
Hot-swap batteries labelled A/B, 100 % charge
Dock 3 pad heater ON (>4 °C)
RTH altitude set 30 m above tallest obstacle
Thermal quick-check for black-ice threshold
AprilTag surface clear of snow/ice
Compressed archive verified before leaving site

The Matrice 400 is still the only platform I trust when the job has to finish before the weather does, but the real leap this year was handing the night shift to Dock 3. Clean lenses, encrypted cards, and a single static GCP turned a brutal alpine highway into a repeatable data pipeline. If your corridor is colder, windier, or farther from cell coverage than you like, the recipe above will keep the rotors turning long after the road crew clocks out.
