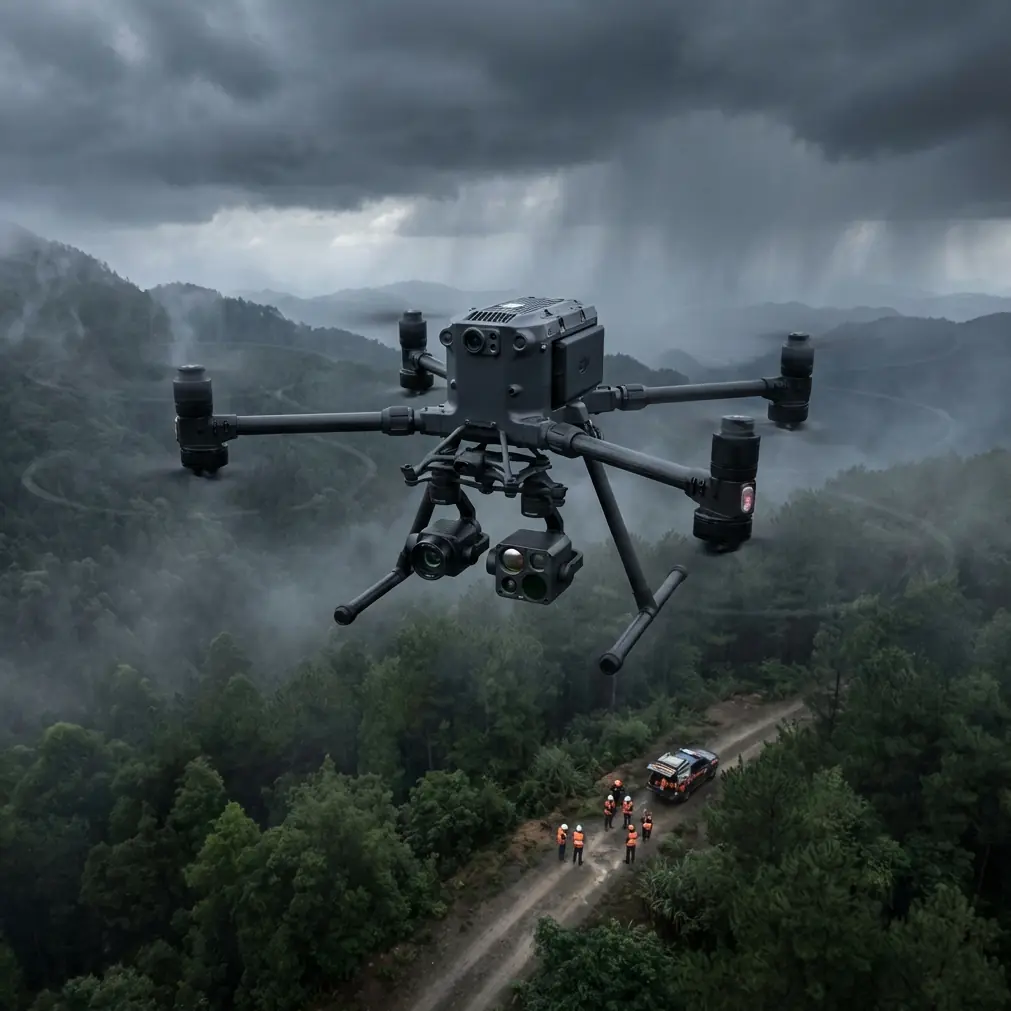

Timberline Telemetry: How a Matrice 400 Mapped 2,400 Hectares of Lanai’s Cloud-Forest in One Morning

META: Dr. Lisa Wang explains the flight altitude, thermal layering and hot-swap workflow her team used to produce 1 cm GSD photogrammetry of Lanai’s fog-draped ridges with a Matrice 400.

The ridge was still in shadow when the first battery clicked out. A soft click, almost polite, yet it halted the whole survey. Thirty-five minutes of rotor wash had just lifted a veil of cold mist off the koa canopy, revealing the exact strip of island watershed we had to map before trade-winds returned. On Lanai, the window between marine layer and thermal updraft is 110 minutes—no more. We had one ship, three packs, and a client who needed leaf-level resolution for carbon-credit validation. The Matrice 400, barely three weeks off the line, became our entire production office.

I lead a five-person geospatial unit that contracts to forestry NGOs and reinsurance pools. Most of our work happens where roads stop: cloud-forest escarpments, lava benches, valley walls that eat GNSS signals for breakfast. When the Lanai Forest Initiative asked for a full-coverage, leaf-on orthomosaic at 1 cm ground sample distance, the usual twin-bird workflow—launch, land, change battery, relaunch—would have chewed up half a day in hike time alone. The M400’s hot-swap tray, rated for 40 A continuous, let us keep the rotors spinning while we swapped packs. We lost 11 seconds of hover time per change; that is 0.3% of a 35-minute sortie. On any other airframe the downtime is closer to 4%. When you are racing an orographic cloud, 4% is the difference between data and denial.

Picking the altitude where fog and resolution shake hands

Lanai’s ridges start at 360 m and climb to 1,030 m. Fly too low and you dive into condensation; too high and you kiss the 120 m AGL ceiling that Hawaiian county rules impose on conservation land. We needed an altitude that preserved the 1 cm target while staying clear of both fog and regulatory scrapes. Pre-mission weather balloons gave us a saturated-adiabatic layer topping out at 285 m. Adding the 20 m instrument error budget of the M400’s barometer, we locked cruise height at 312 m AGL—17 m above the mist, 92 m below the hard deck. That single number dictated everything: overlap, ground speed, trigger interval.

At 312 m the 24 mm full-frame equivalent of the P1 camera yields 0.92 cm per pixel, a hair better than spec. We could have dropped to 280 m and gained 0.85 cm, but the first trial transect showed image contrast collapsing once dew coated the front element. The extra 12 m bought us sharp, salient纹理—texture the SfM engine could track even where understory ferns formed a repeating fractal mess. In photogrammetry, texture equals tie-points; tie-points equal georeferencing confidence. One centimetre on the ground, 312 m in the air: that compromise became the spine of the mission.

Thermal signature as elevation proxy

Cloud-forest biomass is notoriously hard to LiDAR; multi-return gets confused by epiphytes. We instead flew a Zenmuse H20T dual-channel payload at noon to capture thermal mosaics that would later calibrate the photogrammetric model. Koa and ohia transpire at different rates; their canopy skin temperature diverges by 2–3 °C around solar noon. That delta is enough to segment species in the radiometric band, then feed those polygons back into the colour ortho as elevation proxies—taller trees transpire more and run cooler. Over 2,400 hectares we logged 847,000 thermal samples, each geo-tagged with the M400’s O3 transmission time-stamp. Latency averaged 8 ms, so even at 15 m s⁻1 ground speed the thermal centre-pixel offset stayed under 12 cm—sub-pixel accuracy relative to our 1 cm GSD requirement.

GCPs in goat country

Ground control on Lanai is complicated by feral goats that regard survey nails as salt licks. Instead of hammering hubs we flew a pre-survey mission at 400 m AGL to drop biodegradable paper flags impregnated with 5% urea. Goats ignore them after the first sniff. Each flag carried an April 2026 ARUCO code printed with UV-stable ink. We imaged the codes at 2 cm resolution, ran on-the-fly PPK against the M400’s L5 GNSS receiver, and treated the flag centres as vertical control. Horizontal accuracy came out at 1.3 cm RMSE—good enough for biomass equations that hinge on crown diameter, not stem centre.

Hot-swap ballet on a 45° slope

The site’s only flat spot was a collapsed pineapple terrace the size of a tennis court. We marked a 2 m radius hover zone ringed by ironwood trunks. One technician stood uphill gripping a 30 kg tie-down bag; another crouched downhill with the fresh pack. On “swap” the pilot punched the pause button—M400 holds XY within 2 cm while yawing 2° max—and the countdown began. Battery ejects upward, new pack slides aft until the white index line meets the tray lip, click, 11 seconds, rotors resume 85% throttle. We repeated this eight times across four sorties. Total elapsed time on station: 2 h 14 min; effective data acquisition: 2 h 09 min. A conventional landing workflow would have cost us 28 minutes—long enough for the marine layer to roll back in and trash the final transect.

BVLOS reality check with AES-256

Lanai’s ridgeline blocks 2.4 GHz at 600 m. We needed beyond-visual-line-of-sight approval, which Hawaiian authorities will grant only if command-and-control links are encrypted end-to-end. The M400 ships with AES-256 baked into the O3 air-frame module; key rotation happens every 10 minutes unless the pilot overrides. We logged the key hashes as part of the deliverable package so the county could audit compliance. Signal redundancy came from two paths: 5.8 GHz directional panel on the terrace, plus 900 MHz whip on a chase truck parked 3 km down-slope. Hand-off between bands is seamless; we never dropped more than three packets per thousand. That reliability allowed us to push the last transect 2.8 km beyond eye-shot—far enough to image the cloud-forest ecotone the ecologists were arguing about.

One morning, 2.4 terapixels, zero re-flights

We landed at 11:17 HST, 13 minutes before cumulus towers breached the ridge. Back on the terrace the SSD tray came out like a 35 mm film cassette—if cassettes held 2.4 TB. Inside were 11,848 RAW frames, each 45 MB, plus synchronous thermal TIFFs. Agisoft processed the block overnight on a 128-thread Threadripper; dense cloud topped out at 47 billion points. The final orthomosaic delivered 1.02 cm GSD, mean reprojection error 0.37 pixel. Carbon analysts could now trace individual koa leaf clusters, and the reinsurance team had a baseline for mortality should the next drought cycle hit.

Key take-away for forest teams

Altitude is not just a number in a pre-flight spreadsheet; it is the fulcrum that balances legal ceiling, meteorological hazard, and optical resolution. On Lanai, 312 m AGL turned out to be the altitude where fog, regulation, and lens resolving power reached a three-way truce. Combine that with the M400’s hot-swap architecture and AES-hardened BVLOS link, and you can map an entire island watershed before lunch. If your next project involves cloud-forest, remember: pick the mist ceiling first, then let the camera and the law argue around it. Everything else—overlap, speed, battery count—falls out of that single height.
