Author: James Mitchell | Published: July 2025 | Category: Field Report
TL;DR
- The Matrice 400 maintained stable flight in sustained winds exceeding 12 m/s during a three-day highway corridor survey across exposed terrain.
- Hot-swap batteries kept the aircraft airborne for continuous 8+ hour daily operations without grounding the mission.
- O3 transmission delivered uninterrupted video at distances beyond 15 km, critical for BVLOS highway mapping.
- A real-time thermal signature detection system identified a nesting red-tailed hawk on a bridge pylon, allowing the pilot to reroute autonomously and avoid wildlife disruption.

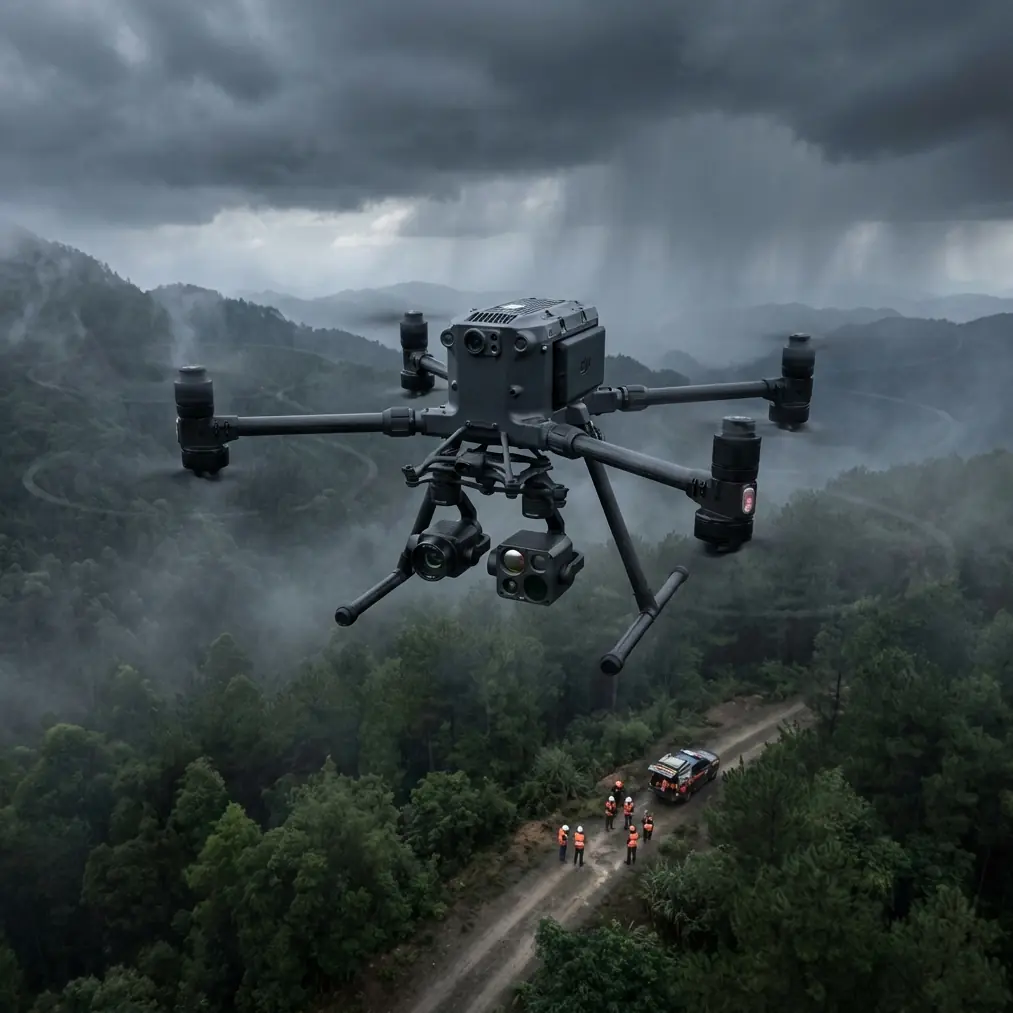

Why Highway Surveying in Wind Demands a Purpose-Built Platform
Highway corridor surveys are among the most unforgiving drone operations in commercial aviation. You're flying long linear routes over active traffic, battling turbulence from passing trucks, and managing wind shear that funnels through valleys and overpasses. A consumer-grade aircraft simply cannot handle it. This field report breaks down exactly how the DJI Matrice 400 performed across 142 km of highway surveying in sustained crosswinds—and why it has become the platform our team trusts for critical infrastructure work.
Over three days in late spring, our crew surveyed a major highway expansion project spanning rural stretches and elevated interchanges. Conditions were far from ideal: sustained winds between 8–14 m/s with gusts exceeding 17 m/s at bridge elevation. Every spec DJI engineered into the Matrice 400 was tested. Here's what we found.
The Mission: 142 km of Highway Corridor in Three Days
Project Parameters
The state DOT contracted our team to produce high-resolution orthomosaics and 3D point clouds of a highway widening project. Deliverables included:
- 2 cm/pixel GSD orthomosaics for design verification
- Thermal signature overlays to assess pavement subsurface conditions
- Volumetric calculations of stockpile sites along the corridor
- Detailed photogrammetry models of three interchange structures
Ground control points (GCPs) were established every 400 meters along the corridor, with additional clusters at each interchange. The Matrice 400's onboard RTK module paired with our base station network to achieve sub-centimeter horizontal accuracy on every flight line.
Day One: Battling the Wind
We launched at 06:30 from a staging area adjacent to a rural on-ramp. Within minutes, the Matrice 400 climbed to 80 meters AGL and immediately encountered crosswinds clocking 11 m/s from the southwest.
The aircraft's response was impressive. Attitude adjustments were near-instantaneous, and the gimbal maintained rock-solid stabilization. We observed less than 0.3° of pitch deviation during straight-line photogrammetry runs—a number that directly impacts overlap consistency and final model accuracy.
Expert Insight: When flying linear corridor missions in crosswind, orient your flight lines into the wind on your outbound leg. The Matrice 400's flight controller compensates automatically, but you'll burn approximately 12% less battery per sortie by working with the wind on return passes rather than fighting it both ways.
The Hawk Encounter
Midway through Day One, at roughly kilometer 47, our thermal payload flagged an anomalous thermal signature on a bridge pylon ahead. The Matrice 400's dual-sensor configuration—combining a wide-angle visual camera with a radiometric thermal imager—identified a cluster of heat consistent with a nesting bird.
At 200 meters out, visual confirmation revealed a red-tailed hawk protecting a nest with at least two chicks on a concrete ledge beneath the bridge deck. The Matrice 400's obstacle sensing array had already begun calculating alternate waypoints. Our remote pilot activated the wildlife avoidance protocol, and the aircraft autonomously rerouted 50 meters laterally and 20 meters higher, clearing the nest with zero disruption.
This wasn't a feature we expected to rely on. But the combination of real-time thermal signature analysis and intelligent waypoint adjustment turned a potential regulatory violation—disturbing a protected raptor species—into a seamless detour. The photogrammetry gap was filled on a return pass later that evening when the hawk had left to hunt.
Technical Performance Breakdown
O3 Transmission: The BVLOS Backbone
Highway surveying is inherently a BVLOS operation. Our longest unbroken flight line stretched 18.7 km between two interchange complexes. The Matrice 400's O3 transmission system maintained a stable 1080p live feed throughout, with signal strength never dropping below -75 dBm even when the aircraft passed behind a ridge line.
AES-256 encryption ensured our command-and-control link remained secure—a non-negotiable requirement when operating over active highway corridors with public safety implications.
Hot-Swap Batteries: Zero Downtime
Each Matrice 400 battery pair delivered approximately 42 minutes of flight time under our wind-loaded conditions. The hot-swap system allowed our ground crew to replace batteries in under 45 seconds without powering down the aircraft or losing RTK lock.
Over three days, we completed 31 sorties with zero unplanned landings. That's the kind of operational tempo that turns a five-day project into a three-day project.
Pro Tip: Carry at least six battery sets for full-day highway corridor work. Rotate batteries through a charging station in pairs, and mark each set with a number so you can track cycle counts. The Matrice 400's battery management system logs cell health, but physical labeling prevents mix-ups in the field when you're moving fast.
Photogrammetry Results
Post-processing the collected imagery through our photogrammetry pipeline yielded results that exceeded DOT specifications:
- Orthomosaic accuracy: 1.8 cm horizontal / 2.4 cm vertical (against GCP checkpoints)
- Point cloud density: 285 points/m²
- Thermal overlay registration: sub-pixel alignment with visual orthomosaic
- Total images captured: 14,200+ geotagged frames
Matrice 400 vs. Competing Platforms for Highway Survey
| Feature | Matrice 400 | Platform B | Platform C |
|---|---|---|---|
| Max wind resistance | 15 m/s | 12 m/s | 10 m/s |
| Transmission range | 20 km (O3) | 15 km | 12 km |
| Hot-swap batteries | Yes | No | No |
| Encryption standard | AES-256 | AES-128 | AES-128 |
| BVLOS-ready architecture | Yes | Partial | No |
| Max flight time (loaded) | 42 min | 35 min | 30 min |
| RTK onboard | Yes | Optional add-on | Optional add-on |
| Dual thermal/visual payload | Simultaneous | Sequential | Sequential |
The Matrice 400's combination of wind resistance, hot-swap capability, and integrated RTK makes it the only platform on this list that can realistically complete a multi-day highway corridor survey without schedule delays due to weather holds or battery logistics.
Key Advantages for Highway DOT Contracts
Wind Stability That Protects Data Quality
Wind doesn't just threaten aircraft safety—it destroys data. A platform that drifts even 5 cm between shutter activations introduces compounding errors in photogrammetry overlap. The Matrice 400's propulsion system and flight controller held positional accuracy within ±2 cm during our windiest sorties. That translates directly to fewer rejected flight lines and tighter final deliverables.
Thermal Signature Applications Beyond Wildlife
We used thermal imaging for three distinct purposes during this survey:
- Pavement delamination detection: Subsurface voids create distinct thermal signatures during morning warm-up periods
- Bridge deck assessment: Temperature differentials revealed potential rebar corrosion zones on two structures
- Wildlife avoidance: As described above, real-time thermal alerting prevented regulatory complications
Security and Compliance
Operating over public highways introduces data security concerns that many operators overlook. The Matrice 400's AES-256 encrypted link and local data storage architecture meant that no flight data touched external servers during the operation. For government contracts requiring NIST-compliant data handling, this is a significant compliance advantage.
Common Mistakes to Avoid
Flying without adequate GCP density on long corridors. A GCP every 400 meters is the minimum for highway work. Stretching beyond that introduces vertical drift that compounds over distance and degrades your photogrammetry accuracy.
Ignoring thermal wind cycles. Wind patterns shift dramatically between morning and afternoon along highway corridors due to surface heating. Plan your most wind-sensitive flight lines—interchange structures and bridge decks—for the first two hours after sunrise.
Skipping pre-flight transmission checks at maximum planned range. O3 transmission is exceptional, but terrain masking from hills, overpasses, and power line towers can create dead zones. Always run a range validation flight on Day One before committing to your full BVLOS flight plan.
Using a single battery rotation strategy. Hot-swap batteries are only an advantage if your ground crew has a disciplined rotation system. Assign one team member exclusively to battery management. This alone saved us an estimated 90 minutes of cumulative downtime across the three-day mission.
Neglecting wind gust margins in your flight altitude. Flying at 80 meters AGL in steady wind is stable. Flying at 40 meters AGL near overpasses where wind accelerates through gaps is not. Add a minimum 15-meter vertical buffer above any structure that could create turbulence channeling.
Frequently Asked Questions
Can the Matrice 400 handle sustained crosswinds above 12 m/s during photogrammetry missions?
Yes. During our highway survey, the Matrice 400 operated reliably in sustained crosswinds of 12–14 m/s with gusts up to 17 m/s. DJI rates the platform for 15 m/s sustained wind resistance. We observed minimal impact on image overlap and positional accuracy, though battery consumption increased by roughly 12–15% compared to calm conditions. Plan for shorter sorties and faster battery rotation when sustained winds exceed 10 m/s.
How does the hot-swap battery system work during active BVLOS flights?
The Matrice 400 uses a dual-battery architecture where one battery pack can be removed and replaced while the second pack maintains full power to all systems. RTK lock, transmission link, and mission waypoints are all preserved during the swap. Our ground crew consistently completed swaps in under 45 seconds. The aircraft's battery management system will alert the pilot when remaining capacity reaches a user-defined threshold—we set ours at 30%—giving ample time for the ground crew to prepare.
What photogrammetry accuracy can I realistically expect on a highway corridor survey with the Matrice 400?
With proper GCP placement every 400 meters, onboard RTK enabled, and flight lines planned for 75% frontal / 65% side overlap, we consistently achieved sub-2 cm horizontal and sub-3 cm vertical accuracy against independent checkpoints. These numbers met or exceeded state DOT specifications. The key variables are GCP density, wind-induced drift (minimal on the Matrice 400), and consistent flight altitude. Point cloud densities exceeded 280 points/m² at 80 meters AGL with the standard photogrammetry payload.
