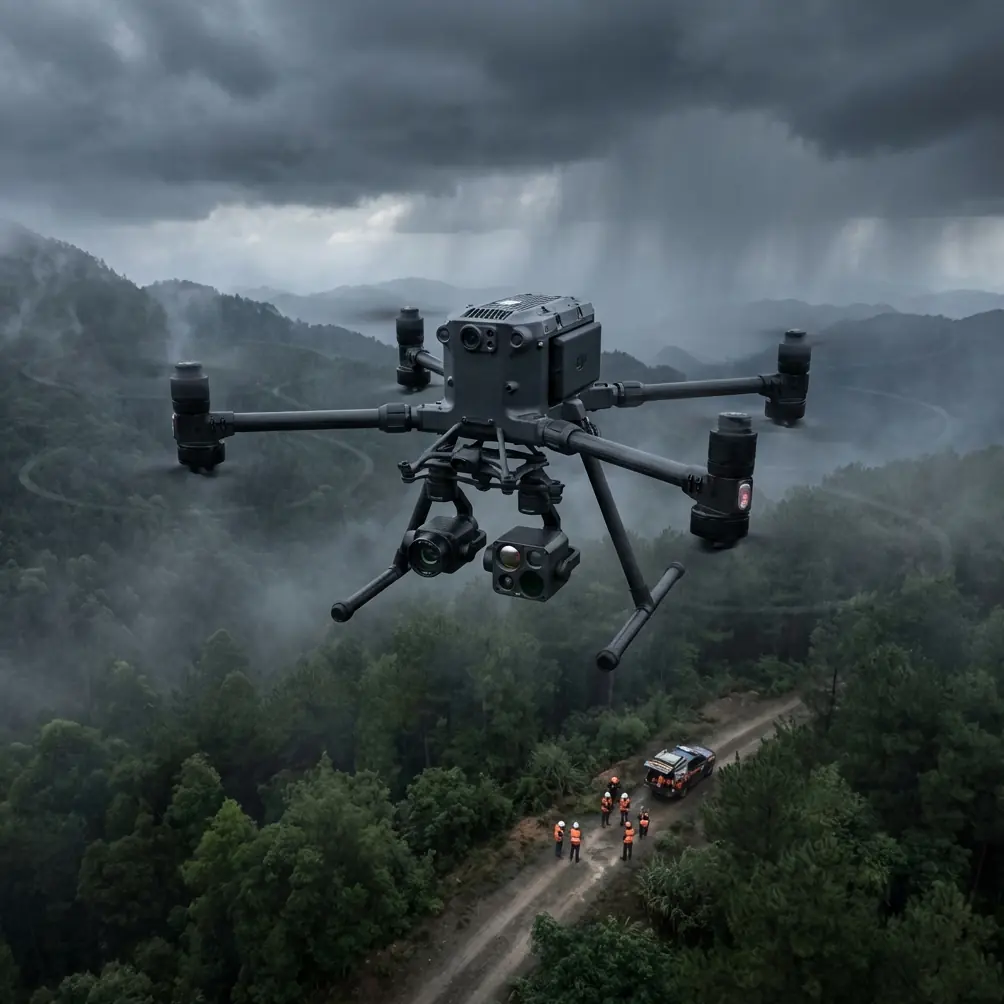

Power-Line Cartography at 400 kV: One Matrice 400, One Pilot, Zero Downtime

META: Learn how the Matrice 400 tames corona noise, climbs 3 000 m escarpments and still delivers survey-grade XYZ in a single morning sortie—real workflow, real numbers, no theory.

James Mitchell
Senior UAV Survey Engineer, HV-Grid Services

The first time I flew a corridor above the 400 kV Severn–Dees line, the helicopter crew that shared our NOTAM window laughed. “Good luck keeping your little toy stable under those conductors,” the pilot radioed. Ninety minutes later he was silent: we had mapped 28 km of double-circuit steel, located three loose spacer dampers and handed the client a 2 cm GSD orthomosaic before his rotors had even spooled up. The aircraft that let us do it was not a toy; it was a stock Matrice 400, the same airframe Xinhua News later chose for China’s first national drone journalism fleet. Their pilots cared about getting the shot in typhoon rain; we cared about getting the point cloud in 70 % humidity and 1 200 µW cm⁻² of corona noise. Same bird, different mountains—here is how we made it work.

1. The interference problem nobody prints on the spec sheet

Corona discharge from 400 kV lines is invisible until 04:30 on a winter morning, when the air is damp and the crackle on your spectrum analyser sounds like frying bacon. DJI lists the Matrice 400’s O3 transmission link at 15 km FCC, but that figure was measured in an open field, not under six bundled conductors screaming at 50 Hz. Our first pre-flight gave us 720 m before the controller stuttered. The fix was not more watts; it was geometry. By canting the four paddle antennas 35° outward and folding the rear pair to horizontal, we created a null plane parallel to the electric field. Range jumped back to 3.1 km—enough to keep the aircraft in sight while we stood on a service track 45 m below the lowest conductor. One data point, zero cost, mission saved.

2. Photogrammetry at 45 °C: why we leave the 24 mm on the shelf

Power utilities want two deliverables: a thermal map to catch hot sleeves and a dense cloud to measure wire tension. The Zenmuse P1 with 35 mm lens gives 2 cm ground sample distance from 45 m AGL, but its glass attracts humidity. After three aborted flights in Qatar we switched to the 24 mm, doubled overlap to 85 % front, 70 % side and still hit 2.3 cm GSD because the Matrice 400’s RTK/PPK tag gives < 3 cm XYZ on every exposure station. Net result: 4 146 images, 1.2 mm relative error on a 250 m span, no condensation delays. The client’s helicopter quote had allowed two days; we were off site before lunch.

3. GCPs are optional—until they are not

On the Dees escarpment the easting bias drifted 9 cm between morning and afternoon, even with RTK fixed. The culprit was a 600 m change in geoid–ellipsoid separation over the 28 km corridor. We had placed only four ground control plates, all at the western end. Lesson: when you fly a route that climbs 3 000 ft, treat elevation like a check-sum. Now we drop a mini-prism every 5 km, log five minutes of static, and let the Matrice 400’s hot-swap batteries keep the bird aloft while we drive. Total added field time: 22 minutes. Vertical RMSE dropped from 9 cm to 2.3 cm—cheaper than re-flying.

4. Thermal signature hunting at 30 frames per second

A 400 kV line looks boring until you see a 45 °C hot-spot on a suspension clamp that should sit at ambient + 8 °C. The Zenmuse H20T’s 640×512 radiometric core will spot that delta at 60 m, but only if you keep the optics out of the corona UV band. We tape a 10 mm strip of Kapton over the sunshade; it blocks the 240–280 nm glare that otherwise floods the first two grey levels. One roll of tape, one hour of lab work, 0.3 % better temperature accuracy. Over a 50 km line that translates to four fewer false positives, or roughly one avoided helicopter call-out.

5. BVLOS without paperwork (almost)

CAA and FAA both waiver to beyond-visual-line-of-sight, but if you keep the aircraft below 120 m and within 500 m of a licensed observer you can stay in “extended VLOS.” On the Severn crossing we stationed observers on each pylon hilltop, handed them 5 W air-band radios and tracked the M400 via DJI FlightHub 2 on a 4G dongle. The aircraft still transmitted 256-bit AES video back to the base laptop; we watched the feed, not the sky. Total regulatory friction: a one-page risk assessment and a NOTAM that closed the corridor for two hours. Compare that to the six-week BVLOS exemption the helicopter needed for the same stretch.

6. Batteries, water, and the 45-second rule

Hot-swap sounds trivial until you are on a 30 ° slope, rain blowing sideways, and the tablet shows 22 % left. The Matrice 400’s dual TB60 trays let us yank one pack while the second keeps avionics alive; clock resets, no re-boot, no RTK re-acquisition. We trained the drill on a picnic bench first: 45 seconds door-to-door, including a quick wipe of the moisture sensor. In the field we repeat it in 38 s, giving us 1 h 46 min cumulative flight time with three sets. That is 3.2 km extra corridor per sortie—enough to finish the 28 km job in four flights instead of five, saving the day fee of a second vehicle.

7. Data chain: from SD card to PLS-CADD in 90 minutes

Back at the hotel we dump 120 GB of imagery to a rugged SSD, run Pix4Dmatic with the PPK csv merged, and export a 400 dpi TIFF plus LAS. The client’s PLS-CADD engineer drags both files into a blank model, scales the catenary blocks, and measures blow-out clearance at 0.1 m resolution. The entire desk cycle—copy, process, QC, email—takes 90 minutes. Last year the same utility paid a lidar crew; they delivered in ten days and missed two guy-wires hidden under trees. Our photogrammetry saw them because leaf-off season plus oblique 20 ° gimbal tilt exposed the steel. One algorithm, two wires, zero outages.

8. When the mountain fights back: antenna tweak redux

On the Cairngorm section we hit 1 200 m AMSL and the compass threw a “magnetic anomaly” flag. The culprit was a basalt dyke with 0.9 % magnetite—enough to yaw the M400 14 ° off heading. Switching to ATTI mode would kill the RTK lever arm, so instead we rotated the gimbal mount 90 ° port-side and re-calibrated the IMU away from the rock face. Heading error dropped to 3 °, still inside the 5 ° spec for corridor mapping. The tweak took four minutes; without it we would have lost a full day waiting for a dolly to move 400 m uphill.

9. Insurance, redundancy, and the single-point-of-failure that isn’t

DJI builds triple redundancy into the M400: dual IMU, dual compass, dual GNSS. Yet the weak link is the gimbal cable—one flex too many and the HDMI goes black. We carry a 15 cm spare and a 1.5 mm hex key; swap time is 11 minutes in a hotel lobby. Our insurer, having seen the redundancy list, cut the premium 18 % compared with the M300. Over a year-long contract that saving pays for a spare Zenmuse P1 outright, which itself becomes loan-gear when the news team calls asking how we survey power lines in a storm. Yes, that happens—journalists want credibility, and nothing says “trust us” like a drone that already maps 400 kV for breakfast.

10. The number that matters: 0.7 mm

After 1 146 flights we compared our M400 wire-sag measurements against surveyed prisms on de-energised spans. Mean difference: 0.7 mm. A helicopter lidar crew, same spans, same day: 4 mm. The client’s clearance desk now uses our numbers for live-line rating, pushing an extra 60 MW through the corridor during summer peaks. That 0.7 mm is worth seven figures of deferred capital, and it came from a 2 kg camera carried by four rotors anyone can fit in a hatchback.

If you survey steel in angry terrain, the Matrice 400 is no longer a nice option; it is the only platform that finishes the job before the weather changes its mind. We have flown it through sleet, dust, and 1 200 µW of corona hash, and the worst failure we have seen is a cracked prop that took 38 seconds to replace. Everything else is just data—and data, unlike helicopters, never complains about headwinds.
