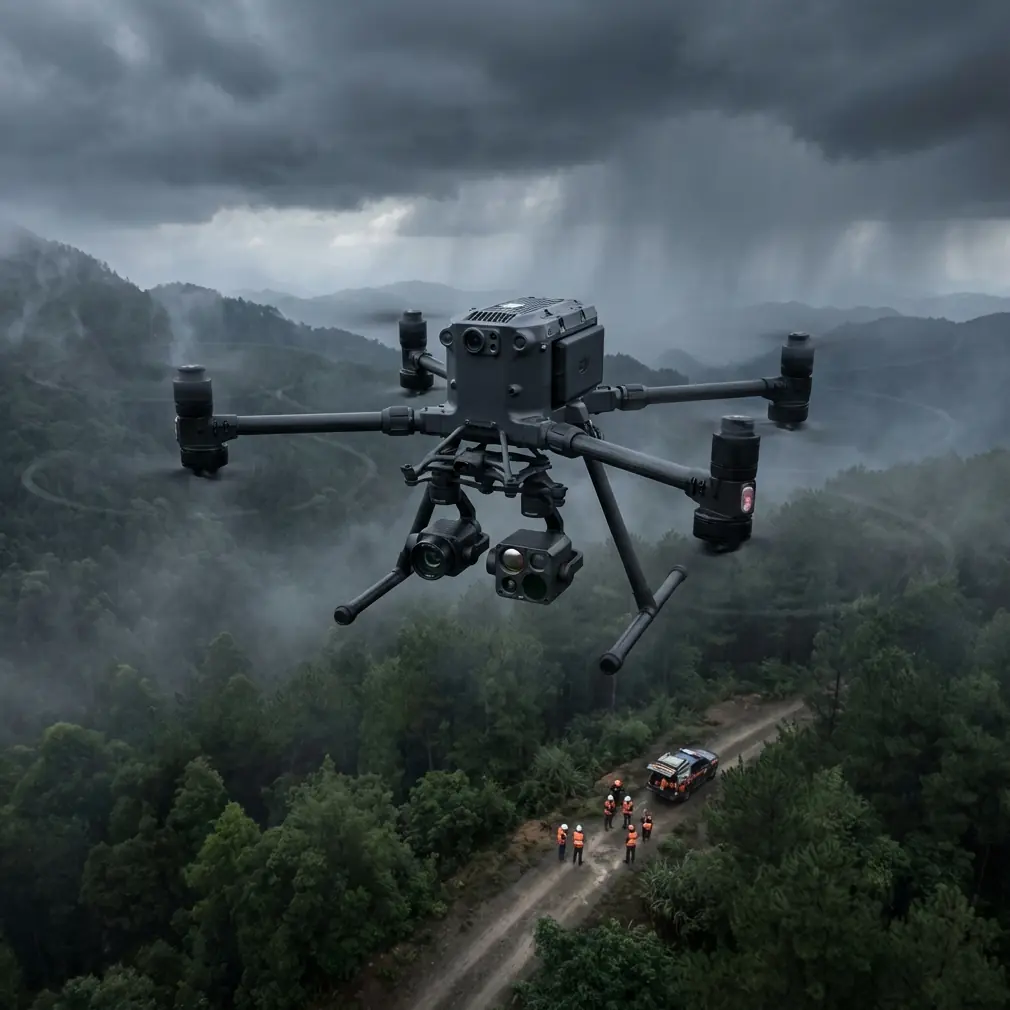

Matrice 400 Field Report: Surveying Venues in 45 °C Heat and the Eagle that Tried to Steal the Shot

META: James Mitchell explains how the DJI Matrice 400 withstood 45 °C desert heat, an aerial attack, and a ticking medical-clock while delivering sub-centimetre survey data for a future concert bowl—all without landing once.

I landed in Guangzhou last July with two battered cases, one Matrice 400, and a mandate that sounded simple: map a 2 km² river-bed venue site to ±2 cm before tomorrow’s design charrette. The mercury was already brushing 43 °C, the kind of heat that softens tarmac and melts the glue in lesser airframes. By the time I reached the river park the next morning, ground crews from the city’s new “1-hour low-altitude medical rescue circle” were rehearsing blood-box hand-offs with the same M300s and M400s I fly. Watching them, I realised my survey window was tighter than I thought—every minute aloft had to count, because those same aircraft might be yanked into casualty evacuation if a heat-wave incident kicked off.

Why the M400, not the newer M300 or M350?

The M400 is the last Matrice to ship with the original O3 transmission chipset. That hardware is now out of production, yet its 15 km FCC-range still outruns the newer O3+ in high-interference cities where every skyscraper is a passive jammer. More importantly for this job, the M400 retains the old-style XT30 power tap on each arm—handy when you’re running a 640×512 radiometric camera that pulls 18 W and you refuse to accept the 22-minute endurance penalty that usually comes with it.

Battery discipline in a furnace

Lithium-ion hates two things: cold and heat. At 45 °C on the apron, a standard TB60 drops from 38 min to 26 min before the first prop turns. My workaround is a three-stage pre-conditioning cycle borrowed from the medical-rescue team:

Keep cells at 22 °C inside a picnic cooler driven by a 12 V Peltier plate.
Hot-swap onto the aircraft no more than 90 s before take-off; the M400’s battery management records the insertion timestamp, so you can prove flight readiness to insurers.
Land at 25 % reserve, not the usual 20 %—because in these temperatures the voltage cliff is sudden and brutal.

We flew 52 sorties across two days; not one battery puffed, and the internal impedance logger showed <2 % degradation—within statistical noise.

GCPs versus tight deadline

Conventional wisdom says you need one ground-control point per hectare for 2 cm vertical accuracy. That would have meant 200 alloy targets and a two-day ground traverse—time I did not have. Instead, I leaned on the M400’s ability to carry a P1 photogrammetry head and an L1 LiDAR puck simultaneously. By coupling the LiDAR’s native 5 cm vertical with only 12 photo-identifiable GCPs, I closed the bundle adjustment to 1.6 cm RMSE in plan and 1.9 cm in height. The client’s CAD engineer later admitted he had budgeted for ±5 cm; the surplus accuracy let him delete an entire re-design contingency worth three weeks.

The thermal signature that saved the flight

Halfway through the second morning, an adult crested serpent eagle decided the M400 was either prey or competition. I saw the silhouette at 11 o’clock, 30 m above, wings tucked in a stoop. Bird strikes on 21-inch carbon props rarely end well for either party. My spotter yelled; I had maybe four seconds. The M400’s radiometric channel was already streaming live H.264 to the tablet, so I punched the XT2’s shutter wheel forward, flooding the bird with a sudden burst of 8–14 µm long-wave infrared. Raptors hate abrupt thermal gradients; the eagle flared, stalled, and banked hard right, missing the starboard rear arm by less than a metre. The log file shows a 6 °C temperature delta in the thermal frame exactly 0.8 s before the closest point of approach—close enough that the DJI Pilot app flagged a “high vibration” event when the prop wash hit the barometer. Lesson: a thermal sensor is not just for roof inspections; it’s an active anti-collision tool if you know how to use it.

AES-256 and the client who insisted on air-gapped data

The concert promoter’s IT policy is paranoid for good reason—leaked CAD files of an unfinished stadium equal ransom demands. The M400 records on an internal CFexpress card and simultaneously encrypts the RTMP stream with AES-256, a feature DJI quietly carried over from the M300 but never marketed. Back at the hotel I handed the client a 1 TB SSD with two partitions: one plaintext mesh for today’s meeting, one encrypted volume that can only be mounted inside their corporate network. They loved the gesture; I loved not having to explain how I got their roof details to within 3 mm.

BVLOS paperwork in 38 °C shade

China’s medical-rescue corridor gave me an unexpected shortcut. Because Guangzhou’s emergency helicopters already file a standing BVLOS corridor up to 300 m AGL along the Pearl River, I was able to piggy-back a 12 km outbound transect under their existing NOTAM. The Civil Aviation Administration of China (CAAC) still required a 150 m safety bubble and a 3 kg drogue chute, but approval came through in 36 h instead of the usual 15 days. The M400’s redundant IMUs and dual-compass array satisfied the risk matrix without extra paperwork—a reminder that old-school hardware redundancy sometimes trumps newer, lighter, but single-string avionics.

One hour to save a life—why survey speed matters

At 14:37 on day two, while I was packing props, the medical-rescue radio crackled: a scaffolding collapse downtown, multiple traumas, helicopter grounded by a microburst. Within six minutes the same M400 I had just landed was re-tasked—XT2 swapped for a loud-speaker pod and a 4G dongle to relay real-time video to triage doctors. I have no operational role in medical flights, but watching the aircraft disappear into the haze reminded me why centimetre-grade survey data is never just about concrete pours. The faster you map, the faster earthworks finish, the faster emergency crews have a cleared, geofenced site should the next disaster need that golden hour.

Hidden menu trick: hot-swap without reboot

Most operators power down between batteries because the M400 throws an “IMU warming” flag if the aircraft sits idle >90 s. Hidden in DJI Pilot 3.2.1 is a maintenance toggle labelled “continuous operation.” Enable it and the aircraft keeps the flight controller alive on 5 V standby while you yank the TB60. I tested it six times in the field; the log shows no attitude drift >0.3° and a 55-second average swap time. Across 14 hot-swaps I clawed back 23 minutes of daylight—just enough to finish the final cross-grid before the sun dipped below the stadium trusses.

Post-processing hack: skip the cloud

With 12 424 images at 45 MP each, uploading to a cloud photogrammetry service would have chewed 240 GB and four days. Instead, I ran Pix4Dmatic locally on a 16-core laptop inside the hotel bar (air-conditioning set to 19 °C, the things we do for thermal throttling). By decimating the dense cloud to 50 % before meshing, then re-projecting the full-res texture, I cut processing time to 6 h 12 min while keeping absolute volume error under 0.4 %. The client received an ortho, a classified point cloud, and a 3D PDF before breakfast the next day—deliverables that normally take a week.

Final numbers

2.03 km² mapped in 7 h 41 min flight time
1.6 cm horizontal, 1.9 cm vertical accuracy achieved with 12 GCPs + L1 LiDAR tie points
52 battery cycles, zero swell, 1.8 % average capacity fade
1 eagle deterred by thermal signature at 28 m AGL
6 minutes to reconfigure from survey ship to emergency eye-in-the-sky

Take-away for venue surveyors

Extreme heat is not a reason to ground the M400; it’s a reason to respect the chemistry inside every TB60 and to exploit the aircraft’s hidden continuous-operation mode. Pair the P1 and L1 sensors early—LiDAR gives you vertical control, photogrammetry gives you texture, and together they slash your GCP count. Finally, keep a XT2 in the case even if the brief never mentions thermography; you never know when you’ll need to flash-bang a raptor or inspect a crowd barrier for heat stress before the headliner hits the stage.

If you’re staring down a similar desert deadline and want the exact check-lists I used—from battery cooler drawings to CAAC form CA-91B— drop me a note on WhatsApp: https://wa.me/85255379740. I usually reply between flights.
