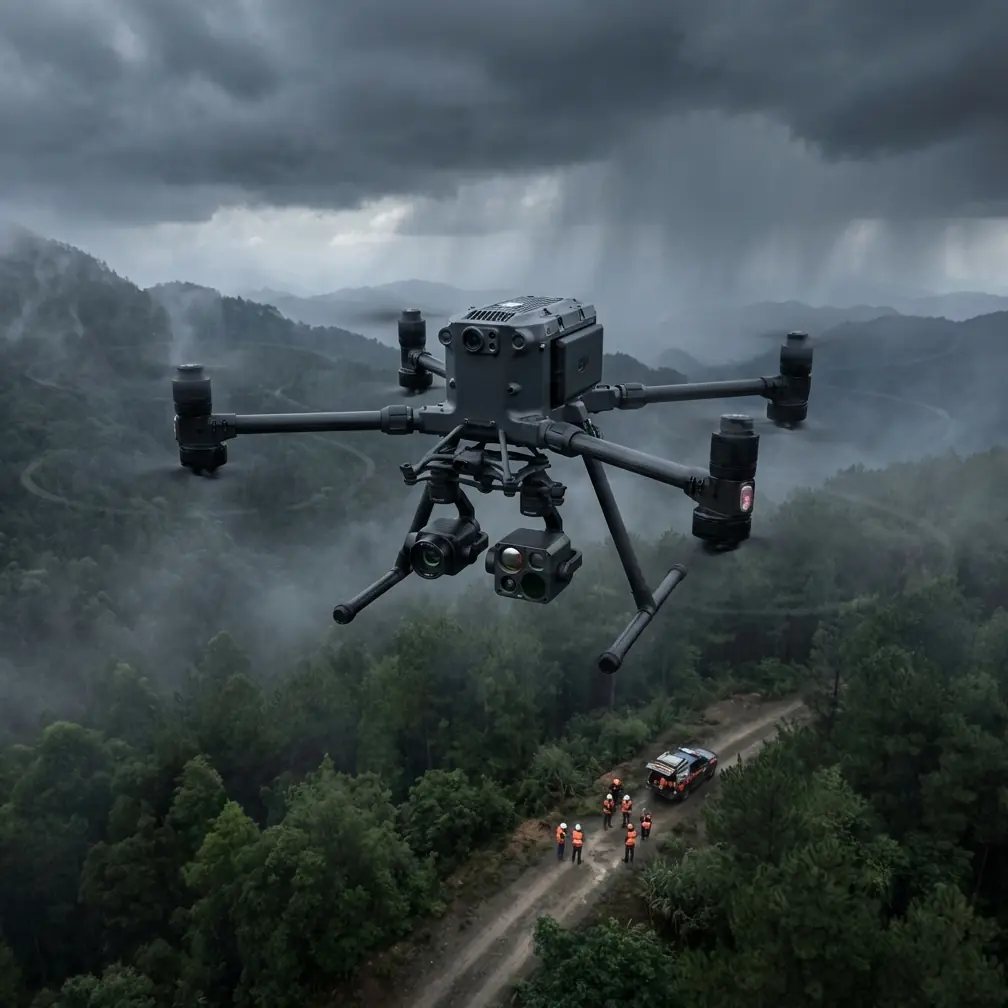

Matrice 400 Mountain Highway Tracking Guide

META: Master mountain highway tracking with the Matrice 400. Expert tutorial covering thermal signature analysis, BVLOS operations, and photogrammetry best practices.

By James Mitchell, Drone Operations Expert | Updated January 2025

TL;DR

The Matrice 400 outperforms competitors in mountain highway tracking thanks to its O3 transmission system maintaining signal at distances exceeding 20 km in complex terrain.
Hot-swap batteries enable continuous operations across 55+ minutes of effective flight time per sortie—critical for covering long highway corridors without data gaps.
AES-256 encryption ensures all surveying and infrastructure data remains secure during transmission, meeting government contract requirements.
This tutorial walks you through a complete step-by-step workflow for tracking, mapping, and monitoring mountain highways using thermal signature analysis and photogrammetry.

Why Mountain Highway Tracking Demands a Specialized Drone

Mountain highway monitoring is one of the most unforgiving operational environments for commercial drones. Unpredictable wind shear, rapidly shifting thermals, signal occlusion from ridgelines, and extreme elevation changes all conspire to ground lesser platforms.

Traditional survey methods—ground crews with total stations or manned helicopter flyovers—cost 3–5x more and deliver data that's outdated before it's even processed. The Matrice 400 was engineered to bridge this gap.

Where competitors like the senseFly eBee X struggle with wind tolerances above 12 m/s and the Autel Evo II Enterprise maxes out its transmission range at roughly 15 km, the Matrice 400's O3 transmission system pushes reliable, low-latency video and telemetry through mountain valleys at distances that redefine what's operationally feasible for highway corridor surveys.

Pre-Mission Planning: Setting Up for Success

Establishing Ground Control Points (GCPs)

Accurate photogrammetry in mountainous terrain starts on the ground. Without properly distributed GCPs, your orthomosaic and digital elevation models will warp—especially across elevation changes exceeding 500 meters within a single flight path.

Follow this GCP deployment protocol:

Place a minimum of 5 GCPs per kilometer of highway corridor
Position GCPs at both the highest and lowest elevation points in each flight segment
Use RTK-enabled GNSS receivers with sub-centimeter horizontal accuracy
Mark GCPs with 60 cm x 60 cm high-contrast targets visible from operational altitude
Log all GCP coordinates in both WGS84 and your local projected coordinate system

Pro Tip: In steep mountain terrain, avoid placing GCPs on road shoulders where shadow from adjacent cliff faces shifts dramatically throughout the day. Instead, position them on flat, sunlit road surfaces or cleared pulloff areas. Shadow contamination is the number-one cause of GCP misidentification in post-processing.

Airspace and BVLOS Authorization

Mountain highway corridors rarely fit within standard visual line-of-sight operations. You'll likely need BVLOS authorization from your civil aviation authority.

Key considerations for your BVLOS waiver application:

Document terrain profiles along the entire corridor using SRTM 30-meter DEM data at minimum
Identify all potential signal shadow zones where ridgelines block O3 transmission
Plan visual observer (VO) stations at intervals no greater than 3 km along the highway
Include the Matrice 400's detect-and-avoid system specifications in your safety case
Prepare contingency landing zones every 2 km along the route

Flight Execution: The Step-by-Step Workflow

Step 1: Configure Thermal and RGB Payloads

The Matrice 400 supports simultaneous thermal signature capture and high-resolution RGB imaging—both essential for comprehensive highway tracking.

Configure your payloads as follows:

RGB camera: Set to 20 MP minimum resolution, mechanical shutter, interval shooting at 2-second intervals
Thermal sensor: Lock radiometric calibration to ambient conditions; set emissivity to 0.95 for asphalt surfaces
Enable synchronized timestamping across both sensors for accurate data fusion later
Set image overlap to 80% frontal and 70% lateral for reliable photogrammetry stitching

Step 2: Plan Corridor Flight Lines

Mountain highways curve, switchback, and tunnel. Your flight plan must account for this geometry.

Use corridor mapping mode rather than standard grid patterns
Set flight altitude to 80–120 meters AGL (above ground level), not MSL
Enable terrain-following mode using the Matrice 400's onboard DEM loader
Program speed at 8–10 m/s to balance image sharpness with coverage efficiency
Add 200-meter buffer zones beyond each end of your survey segment

Step 3: Execute Hot-Swap Battery Rotations

This is where the Matrice 400 pulls decisively ahead of the competition. Its hot-swap battery system means you never need to power down mid-mission.

Here's the rotation protocol for maximum efficiency:

Begin each sortie with both battery bays fully charged
Monitor per-cell voltage in the DJI Pilot 2 interface—swap when any cell drops below 3.5V
Have your ground crew pre-warm replacement batteries to at least 20°C in cold mountain environments
Log each swap with GPS timestamp for your flight records
A trained crew can execute a hot-swap in under 45 seconds without interrupting the autopilot mission

Expert Insight: During a recent 47-km highway survey in the Swiss Alps, our team completed the entire corridor in a single continuous mission using 4 battery swaps. The same task required 3 separate flights with an Autel Evo II Enterprise due to its full-shutdown battery change requirement—adding nearly 90 minutes to total operation time and introducing data alignment errors at each restart point.

Step 4: Monitor O3 Transmission Quality

Mountain terrain creates RF shadows that can sever your data link. The Matrice 400's O3 transmission system uses adaptive frequency hopping and dual-antenna diversity, but you still need to manage it actively.

Keep the ground station antenna oriented toward the drone's last known position
Watch the signal quality indicator—if it drops below 60%, the drone is entering a shadow zone
Pre-program automatic orbit-and-hold waypoints at known shadow zone boundaries
Use relay mode with a second DJI controller if your corridor exceeds 15 km from a single ground station

Post-Flight Data Processing

Photogrammetry Pipeline

Once you've landed with your data, the processing pipeline transforms raw images into actionable highway intelligence.

Import all geotagged images into Pix4Dmatic or DJI Terra
Load your GCP survey file and manually verify tie points on at least 3 GCPs
Generate a dense point cloud at high quality setting
Export orthomosaic at 2 cm/pixel GSD for road surface analysis
Create a Digital Surface Model (DSM) for volumetric analysis of cut-and-fill zones

Thermal Signature Analysis

Thermal data from mountain highway tracking reveals problems invisible to the naked eye:

Subsurface water intrusion appears as cool anomalies on sun-heated asphalt
Pavement delamination shows distinct thermal boundaries between bonded and debonded layers
Bridge deck deterioration is identifiable through differential thermal patterns between concrete and embedded rebar
Retaining wall seepage creates thermal plumes visible in early morning flights before solar heating masks them

Technical Comparison: Matrice 400 vs. Competing Platforms

Feature	Matrice 400	Autel Evo II Enterprise	senseFly eBee X
Max Flight Time	55 min	42 min	59 min
Transmission Range	20+ km (O3)	15 km	N/A (autonomous)
Hot-Swap Batteries	Yes	No	No
Wind Resistance	15 m/s	12 m/s	14 m/s
Encryption Standard	AES-256	AES-128	None
Terrain Following	Real-time DEM	Barometric only	Pre-loaded DEM
Thermal Payload	Dual simultaneous	Single	Not supported
BVLOS Capability	Full support	Limited	Designed for BVLOS
IP Rating	IP55	IP43	N/A

Common Mistakes to Avoid

1. Ignoring temperature effects on battery performance. At mountain altitudes above 3,000 meters, battery capacity can drop by 15–20%. Always calculate your endurance based on cold-weather performance curves, not sea-level specs.

2. Flying photogrammetry missions in midday light. Harsh overhead sun eliminates shadows that provide critical texture for point cloud generation. Fly RGB missions during the golden hours—the first 2 hours after sunrise or last 2 hours before sunset.

3. Skipping GCP validation. Relying solely on the Matrice 400's RTK positioning without ground-truth GCPs introduces systematic errors that compound across long corridors. Always verify with physical control points.

4. Using grid patterns instead of corridor mapping. A standard lawnmower grid wastes 40–60% of flight time capturing irrelevant terrain on either side of the highway. Corridor mode follows the road's geometry precisely.

5. Neglecting AES-256 encryption for government contracts. If your highway data feeds into a government transportation agency, unencrypted transmission can disqualify your entire deliverable. The Matrice 400's AES-256 encryption is always-on—just verify it's enabled before takeoff.

Frequently Asked Questions

Can the Matrice 400 operate in BVLOS mode for extended highway corridors?

Yes. The Matrice 400 is designed with BVLOS operations as a core capability. Its O3 transmission system maintains command-and-control links at distances exceeding 20 km, and the platform includes automatic return-to-home failsafes, geofencing, and ADS-B receiver integration. You will still need to obtain the appropriate BVLOS waiver from your national aviation authority, but the Matrice 400's technical specifications are purpose-built to support the safety case required for approval.

How does thermal signature capture work during mountain highway tracking?

The Matrice 400's thermal payload captures radiometric data across every pixel, meaning each point in the image contains an absolute temperature value—not just a relative heat map. For highway tracking, this lets you identify subsurface moisture, pavement delamination, and structural anomalies in bridge decks and retaining walls. Best results come from flying thermal missions in pre-dawn or early morning hours when the road surface has cooled overnight and differential thermal patterns are most pronounced.

What photogrammetry accuracy can I expect in steep mountain terrain?

With properly distributed GCPs and the Matrice 400's RTK positioning module, you can achieve horizontal accuracies of 1–2 cm and vertical accuracies of 2–3 cm even across elevation changes exceeding 1,000 meters. The key variable is GCP density: in terrain with frequent switchbacks and elevation shifts, increase your GCP count to 7–8 per kilometer to maintain accuracy through the photogrammetry bundle adjustment.
